6102 · Question #4
A customer has an Avaya Media Gateway connected to a virtual services Platform (VSP) 9000. The IP telephones are connected to legacy access switches only supporting 802.1p. Avaya 6102 Exam Which…
The correct answer is C. 1: L2 802.1p Pverride = True; L3 Trust = Core; Diffserv = True 2: L2 802.1p Override = False. See the full explanation below for the reasoning.
Question
A customer has an Avaya Media Gateway connected to a virtual services Platform (VSP) 9000. The IP telephones are connected to legacy access switches only supporting 802.1p. Avaya 6102 Exam Which configuration regarding Trusted and Untrusted Interfaces should be used on interfaces 1 and 2, to guarantee the DSCP marking sent by telephony devices are kept, and there is compatibility between the VSP 9000 and legacy switches for the VoIP prioritization?

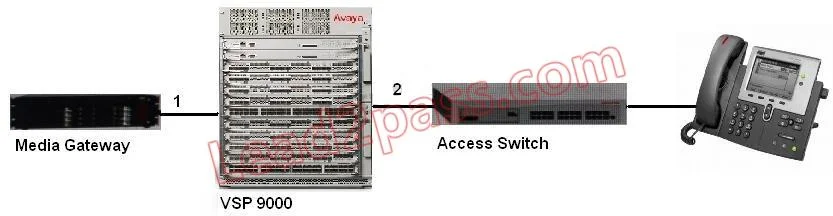

Exhibit
Options
- A1: L2 802.1p Override = False; L3 Trust = Core; Diffserv = True 2 : L2 802.1p Override = True;
- B1: L2 802.1p Override = True; L3 Trust = Core ; Diffserv = True 2: L2 802.1p Override = False;
- C1: L2 802.1p Pverride = True; L3 Trust = Core; Diffserv = True 2: L2 802.1p Override = False;
- D1: L2 802.1p Override = true; L3 Trust= Core; Diffserv = True; 2: L2 802.1p Override = True;
- E1: L2 802.1p Override = True; L3 Trust = Access; Diffserv = True 2: L2 802.1p Override = False;
How the community answered
(25 responses)- B4% (1)
- C80% (20)
- D12% (3)
- E4% (1)
Community Discussion
No community discussion yet for this question.
