4A0-C01 · Question #338
Click on the exhibit. The numbers beside the links are the metrics for that link. Given the diagram, what path will traffic follow from router R1 to router R7, and from router R7 to router R1, if…
The correct answer is C. Router R1 to router R7 will follow (R1-R3-R5-R6-R7). Router R7 to R1 will follow (R7- R6-R4-R2-R1). See the full explanation below for the reasoning.
Question
Click on the exhibit. The numbers beside the links are the metrics for that link. Given the diagram, what path will traffic follow from router R1 to router R7, and from router R7 to router R1, if IS-IS is the routing protocol?

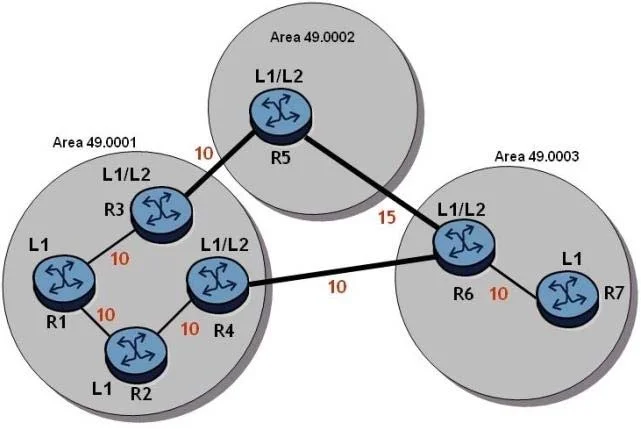

Exhibit
Options
- ARouter R1 to router R7 will follow (R1-R2-R4-R6-R7). Router R7 to R1 will follow (R7- R6-R4-R2-R1)
- BRouter R1 to router R7 will follow (R1-R2-R4-R6-R7). Router R7 to R1 will follow (R7- R6-R5-R3-R1)
- CRouter R1 to router R7 will follow (R1-R3-R5-R6-R7). Router R7 to R1 will follow (R7- R6-R4-R2-R1)
- DRouter R1 to router R7 will follow (R1-R3-R5-R6-R7). Router R7 to R1 will follow (R7- R6-R5-R3-R1)
How the community answered
(61 responses)- A15% (9)
- B8% (5)
- C74% (45)
- D3% (2)
