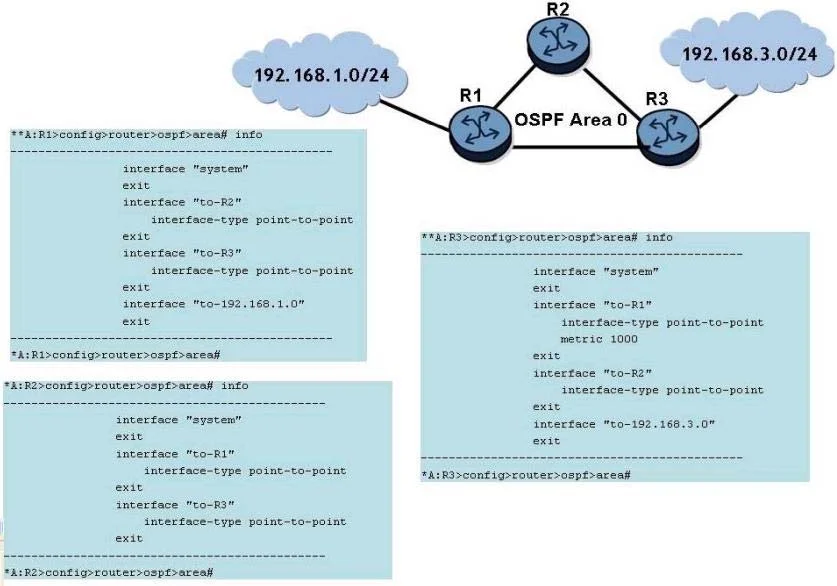

Click on the exhibit. All ports in the network are operationally up and have a speed of 1Gbps. Which of the following is TRUE?

Question

Exhibit

Options

• AData traffic from network 192.168.1.0/24 to 192.168.3.0/24 will be forwarded through router R2.
• BData traffic from network 192.168 3.0/24 to 192.168.1.0/24 will be forwarded from router R3 directly to router R1.
• CThe system interface of routers R1 and R3 must be included into OSPF for traffic to flow between the 192.168.1.0/24 and 192.168.3.0/24 networks.
• DThe OSPF adjacency between router R1 and router R3 is operationally up.

• A
  7% (4)
• B
  16% (9)
• C
  4% (2)
• D
  74% (42)
