Click on the exhibit. All ports in the network are operationally up and have a speed of 1Gbps. Which of the following is TRUE?

Question

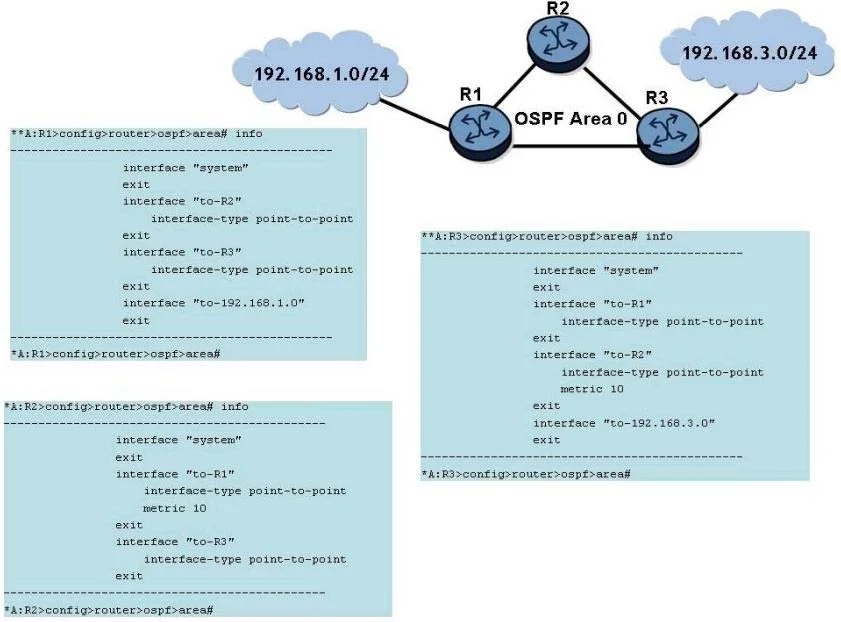

Exhibit

Options

• AData traffic from network 192.168.1.0/24 to 192.168.3.0/24 will be forwarded through router R2.
• BData traffic from network 192.168.3.0/24 to 192.168.1.0/24 will be forwarded through router R2.
• CThe system interface of routers R1 and R3 must be included into OSPF for traffic to flow between the 192.168.1.0/24 and 192.168.3.0/24 networks.
• DThe OSPF adjacency between router R1 and router R3 is operationally down.

• A
  3% (1)
• B
  74% (25)
• C
  18% (6)
• D
  6% (2)

No community discussion yet for this question.
