4A0-104 · Question #59
Click on the exhibit button below. Assuming the customer only needs to monitor traffic from PE3 to the customer site, what two items are missing in the configuration of PE5, the Alcatel-Lucent 7750…
The correct answer is A. The mirror destination configuration on PE5 is missing the "remote-source" command. D. There needs to be a configuration command to put sap 1/1/3 on the mirror destination of PE5. See the full explanation below for the reasoning.
Question
Click on the exhibit button below. Assuming the customer only needs to monitor traffic from PE3 to the customer site, what two items are missing in the configuration of PE5, the Alcatel-Lucent 7750 Service Router in the Head Office? (Assume that the IP/MPLS network structure between the local and remote PEs is in place.)

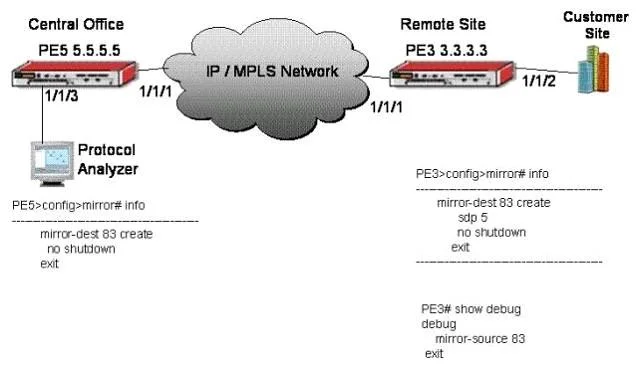

Exhibit
Options
- AThe mirror destination configuration on PE5 is missing the "remote-source" command.
- BThere needs to be a mirror source configuration on PE5 with the "remote-source" command.
- CThis is not possible since the protocol analyzer is located at the Central Office. It needs to be at
- DThere needs to be a configuration command to put sap 1/1/3 on the mirror destination of PE5.
- EThere needs to be a configuration command to put sap 1/1/3 on the mirror source of PE5
How the community answered
(42 responses)- A81% (34)
- B5% (2)
- C2% (1)
- E12% (5)
Community Discussion
No community discussion yet for this question.
