4A0-103 · Question #44
Click on the exhibit button below. Assume the following: - Each router's OSPF interfaces are in the areas shown. - Bidirectional LDP-over-RSVP tunnels extend from routers R1 to R3 and back over the pa
The correct answer is D. Enable MPLS and RSVP on the router R2 network interfaces.. See the full explanation below for the reasoning.
Question
Click on the exhibit button below. Assume the following:
- Each router's OSPF interfaces are in the areas shown.
- Bidirectional LDP-over-RSVP tunnels extend from routers R1 to R3 and
back over the path R1-R4-R5-R3.
- You enable fast reroute facility bypass on the R5-R3 RSVP LSP.
- Router R5 acts as a PLR, protecting the R5-R3 link by building a
bypass tunnel through router R2. You build a layer 2 VPN on routers R1 and R3, using the LDP-over-RSVP tunnels. What MPLS configuration step must you complete on router R2 for it to protect the end-to-end service?

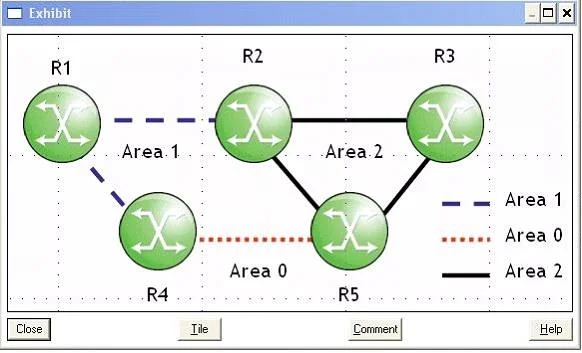

Exhibit
Options
- AEnable LDP on the R2-R5 interface.
- BConfigure T-LDP sessions between routers R2 and R5 and R3.
- CConfigure LDP-over-RSVP support on router R2.
- DEnable MPLS and RSVP on the router R2 network interfaces.
- EEnable LDP on the R2-R5 and R2-R3 interfaces.
How the community answered
(50 responses)- A2% (1)
- B12% (6)
- C2% (1)
- D76% (38)
- E8% (4)
