3V0-41.19 · Question #42
Refer to Exhibit. To meet the technical requirements for NSX Edge VM, which two design choices are required to satisfy this architectural design. (Choose two.)
The correct answer is A. NSX Edge TEP and ESXi TEP need to be in different VLANs. D. vmk ports need to be on VDS instead of N-VDS, with on pNIC for each virtual switch providing. See the full explanation below for the reasoning.
Question
Refer to Exhibit. To meet the technical requirements for NSX Edge VM, which two design choices are required to satisfy this architectural design. (Choose two.)

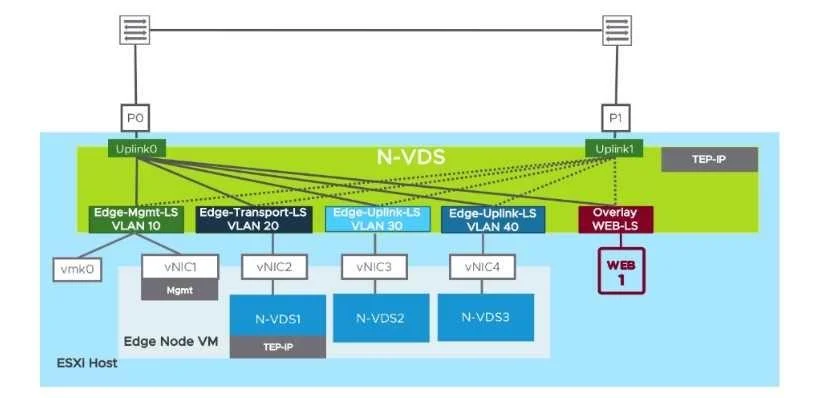

Exhibit
Options
- ANSX Edge TEP and ESXi TEP need to be in different VLANs.
- BESXi host should be prepared as a Transport Node and use VLAN backend segments to
- CESXi host must have more than 2 pNICs available to create another N-VDS. D NSX Edge
- Dvmk ports need to be on VDS instead of N-VDS, with on pNIC for each virtual switch providing
How the community answered
(52 responses)- A71% (37)
- B10% (5)
- C19% (10)
Community Discussion
No community discussion yet for this question.
