352-001 · Question #681

Refer to the exhibit. Company ABC is a Tier 3 service provider that offers Layer 2 and Layer 3 transport for small/medium enterprise customers in the US. Most of their network is built on Layer 2 MPLS

The correct answer is D. Company ABC should adopt a full-mesh POP connectivity.. When customers experience poor convergence due to a Tier 1 provider's core outages, adopting a full-mesh POP topology for Company ABC eliminates single points of failure in the transport layer.

Designing Network Infrastructure

Question

Refer to the exhibit. Company ABC is a Tier 3 service provider that offers Layer 2 and Layer 3 transport for small/medium enterprise customers in the US. Most of their network is built on Layer 2 MPLS circuits from a Tier 1 provider. Many Company ABC customers are using overlay VPN technologies and independent routing protocols, and they are affected with unacceptable convergence time after every major outage in the core of the Tier 1 provider. Which long-term redesign increases network availability?

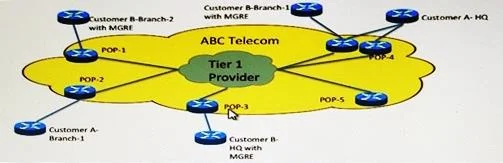

Exhibit

352-001 question #681 exhibit

Options

  • ACustomers replace their own overlay VPN service with the Company ABC Layer 3 VPN service.
  • BCustomers fine tune their routing protocol for faster convergence
  • CCompany ABC replaces the Layer 2 MPLS circuit from the Tier 1 service provider with dark fiber/
  • DCompany ABC should adopt a full-mesh POP connectivity.

How the community answered

(33 responses)
  • A
    6% (2)
  • B
    21% (7)
  • C
    9% (3)
  • D
    64% (21)

Why each option

When customers experience poor convergence due to a Tier 1 provider's core outages, adopting a full-mesh POP topology for Company ABC eliminates single points of failure in the transport layer.

ACustomers replace their own overlay VPN service with the Company ABC Layer 3 VPN service.

Migrating customers to Company ABC's L3 VPN does not change the underlying Layer 2 transport topology, so convergence problems caused by Tier 1 outages would persist.

BCustomers fine tune their routing protocol for faster convergence

Fine-tuning routing protocol timers is a short-term mitigation that reduces convergence time but does not eliminate the outage impact or add redundancy to the network design.

CCompany ABC replaces the Layer 2 MPLS circuit from the Tier 1 service provider with dark fiber/

Replacing MPLS circuits with dark fiber is expensive, geographically constrained, and does not inherently provide redundancy unless paired with a topology change like full-mesh connectivity.

DCompany ABC should adopt a full-mesh POP connectivity.Correct

Full-mesh POP connectivity ensures every Company ABC Point of Presence has a direct path to every other POP, so a single Tier 1 provider link or node failure does not isolate any segment of the network. This topological redundancy is a long-term architectural change that directly addresses the root cause - lack of alternate paths in the transport layer. Customers' overlay VPNs and routing protocols will converge faster because alternate physical paths exist without waiting for the Tier 1 provider to restore its core.

Concept tested: WAN topology redesign for high availability

Source: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/WAN_and_MAN/Design/WAN_Design_Guide.html

Topics

#network availability#full-mesh POP#service provider redesign#convergence
