350-801 · Question #446

Refer to the exhibit. An INVITE with the SDP in the exhibit is received. Based on the configuration, which two codecs will be in the SDP of the outbound INVITE? (Choose two.)

The correct answer is C. ilbc D. G.711ulaw. The outbound INVITE SDP will include G.711ulaw and iLBC because these codecs are typically configured as preferred or allowed on Cisco voice devices and were likely offered by the incoming INVITE and matched by the system's capabilities.

On-Premises Call Control

Question

Refer to the exhibit. An INVITE with the SDP in the exhibit is received. Based on the configuration, which two codecs will be in the SDP of the outbound INVITE? (Choose two.)

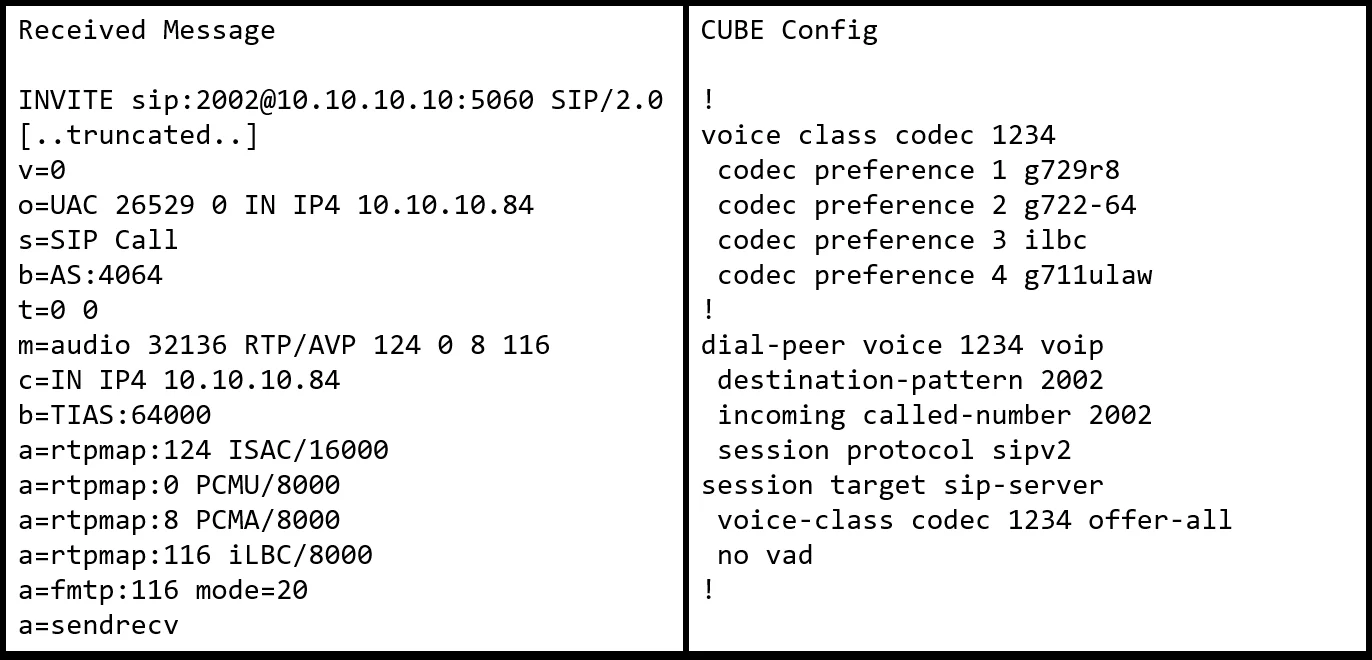

Exhibit

350-801 question #446 exhibit

Options

  • AG.729r8
  • Bisac
  • Cilbc
  • DG.711ulaw
  • EG.7l1alaw

How the community answered

(28 responses)
  • A
    7% (2)
  • B
    4% (1)
  • C
    75% (21)
  • E
    14% (4)

Why each option

The outbound INVITE SDP will include G.711ulaw and iLBC because these codecs are typically configured as preferred or allowed on Cisco voice devices and were likely offered by the incoming INVITE and matched by the system's capabilities.

AG.729r8

G.729r8 is a low-bandwidth codec, but it might not be chosen if higher-quality options like G.711ulaw or specific error-resilient codecs like iLBC are preferred by configuration or available bandwidth.

Bisac

ISAC (Internet Speech Audio Codec) is a wideband audio codec developed by Google, which is not a standard codec often prioritized by default in Cisco's traditional telephony environments for general calls.

CilbcCorrect

iLBC is a licensed, robust, low-bit-rate codec designed for voice communication over IP networks with packet loss, and if enabled and offered by the remote party, it can be successfully negotiated by Cisco devices.

DG.711ulawCorrect

G.711ulaw is a widely supported and high-quality narrowband codec that is often prioritized in Cisco voice configurations, ensuring broad compatibility and clear voice quality in most telephony environments.

EG.7l1alaw

G.711alaw is an alternative to G.711ulaw primarily used in Europe and other regions, so if the system is configured for ulaw, alaw would not be chosen for a North American or similarly configured system.

Concept tested: SIP codec negotiation and preference

Source: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_5_1/systemConfig/cucm_b_system-configuration-guide-1251/cucm_b_system-configuration-guide-1251_chapter_0100.html#concept_F9F7E80332205562095C089874B20F2B

Topics

#SDP Negotiation#Voice Codecs#Codec Preference#SIP Protocol
