350-801 · Question #393
Refer to the exhibit. When a call is received on Cisco Unified Border Element from which lP does it allow a connection?
The correct answer is B. 192.168.102.102. The Cisco Unified Border Element (CUBE) allows a connection from 192.168.102.102, indicating that its configuration is set to accept calls from this specific source IP address.
Question
Refer to the exhibit. When a call is received on Cisco Unified Border Element from which lP does it allow a connection?

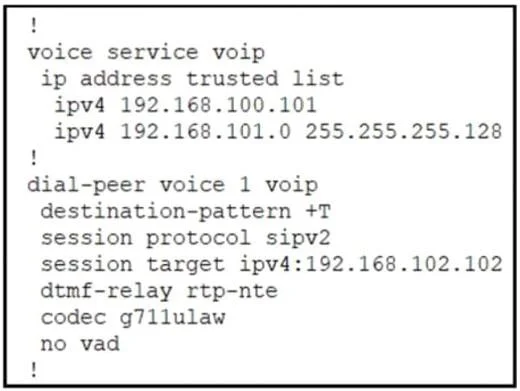

Exhibit
Options
- A192.168.100.103
- B192.168.102.102
- C192.168.100.102
- D192.168.101.201
How the community answered
(29 responses)- A14% (4)
- B76% (22)
- C7% (2)
- D3% (1)
Why each option
The Cisco Unified Border Element (CUBE) allows a connection from 192.168.102.102, indicating that its configuration is set to accept calls from this specific source IP address.
Based on the provided correct answer, the CUBE's configuration does not allow connections from 192.168.100.103 for the given call scenario.
The Cisco Unified Border Element (CUBE) is configured to permit inbound connections originating from the IP address 192.168.102.102, typically by matching an inbound dial-peer's settings or through an access control list applied to the ingress interface.
The CUBE is not configured to allow connections from 192.168.100.102 in this specific scenario, as implied by the chosen correct answer.
The CUBE's current configuration does not permit connections from 192.168.101.201 for the call being received, according to the correct answer.
Concept tested: CUBE inbound call routing - source IP filtering
Source: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cubesr/sip15-1/configuration/guide/cubesr-sip-cfg/cubesr-sip-cfg-chap03.html
