350-801 · Question #367

Refer to the exhibit. CUBE_1 and CUBE_2 must use the G.729r8 codec when communicating. Which action completes the configuration?

The correct answer is C. Reset the dial peer on CUBE_1.. To ensure CUBE_1 and CUBE_2 use the G.729r8 codec after a configuration change, resetting the relevant dial-peer on CUBE_1 forces the new codec settings to be applied.

Voice Gateways and Session Border Controllers

Question

Refer to the exhibit. CUBE_1 and CUBE_2 must use the G.729r8 codec when communicating. Which action completes the configuration?

Exhibits

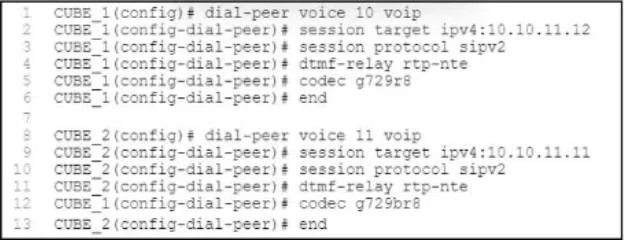

350-801 question #367 exhibit 1
350-801 question #367 exhibit 2

Options

  • ASet dtmf-relay sip-notify on CUBE_1.
  • BDeploy a voice class to CUBE_2.
  • CReset the dial peer on CUBE_1.
  • DConfigure a transcoder on CUBE_1.

How the community answered

(39 responses)
  • A
    10% (4)
  • B
    3% (1)
  • C
    85% (33)
  • D
    3% (1)

Why each option

To ensure CUBE_1 and CUBE_2 use the G.729r8 codec after a configuration change, resetting the relevant dial-peer on CUBE_1 forces the new codec settings to be applied.

ASet dtmf-relay sip-notify on CUBE_1.

Setting dtmf-relay sip-notify is for DTMF signaling, not for enforcing a specific voice codec like G.729r8.

BDeploy a voice class to CUBE_2.

While a voice class can contain codec lists, deploying it to CUBE_2 alone doesn't guarantee CUBE_1 will use G.729r8, and it's not the final step to activate existing changes on CUBE_1.

CReset the dial peer on CUBE_1.Correct

After modifying codec preferences or other significant parameters on a Cisco Unified Border Element (CUBE) dial peer, a 'clear call active voice compact' or 'clear dial-peer voice <tag>' command is often required to ensure that existing calls or future calls initiated through that dial peer pick up the new configuration, such as a specific codec like G.729r8. This action ensures the updated codec settings become active without requiring a full CUBE reload.

DConfigure a transcoder on CUBE_1.

A transcoder is used to convert between different codecs when direct negotiation fails or is not desired; it doesn't enforce G.729r8 directly between two CUBEs that should be able to negotiate it.

Concept tested: Cisco CUBE dial-peer configuration activation

Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/dialpeer/command/dialp-cr-h-thru-z.html#wp1095751

Topics

#CUBE configuration#Codec negotiation#Dial-peer reset#Voice Gateway operations
