350-801 · Question #256

Refer to the exhibit. There is a call flow between Phone A and Phone B Phone B (holder) places Phone A (holder) on hold. Which MRGL and Audio Source are played to Phone A?

The correct answer is D. MRGL A and Audio Source 2. When Phone B places Phone A on hold, Phone A receives Music On Hold (MOH) from the Media Resource Group List (MRGL) configured for Phone A itself, using an available audio source from that MRGL.

On-Premises Call Control

Question

Refer to the exhibit. There is a call flow between Phone A and Phone B Phone B (holder) places Phone A (holder) on hold. Which MRGL and Audio Source are played to Phone A?

Exhibit

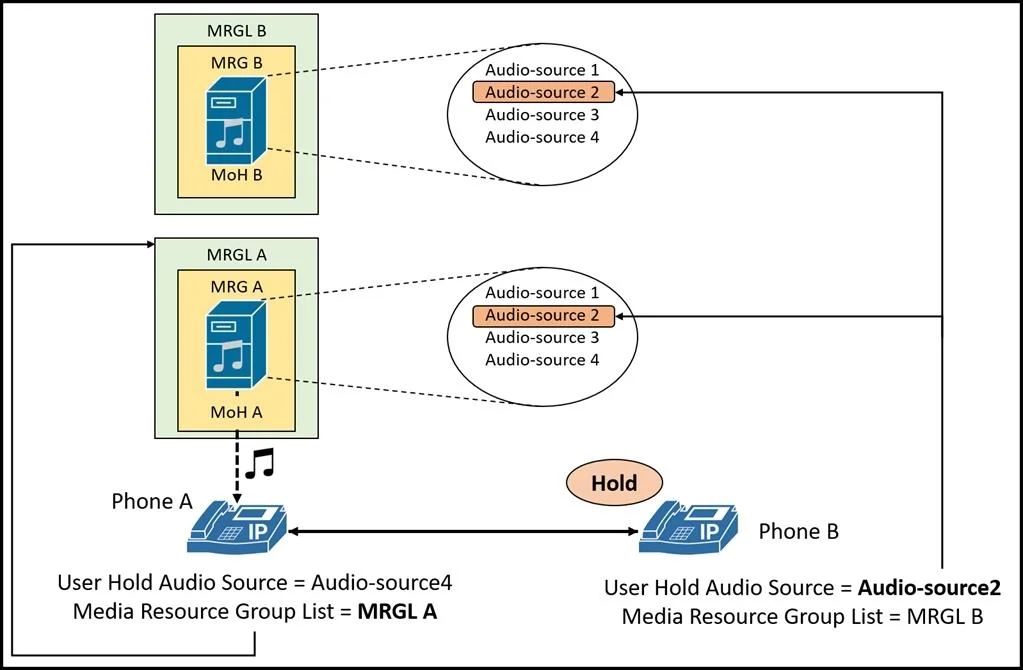

350-801 question #256 exhibit

Options

  • AMRGL A and Audio Source 4
  • BMRGL B and Audio Source 4
  • CMRGL B and Audio Source 2
  • DMRGL A and Audio Source 2

How the community answered

(64 responses)
  • A
    2% (1)
  • B
    11% (7)
  • C
    6% (4)
  • D
    81% (52)

Why each option

When Phone B places Phone A on hold, Phone A receives Music On Hold (MOH) from the Media Resource Group List (MRGL) configured for Phone A itself, using an available audio source from that MRGL.

AMRGL A and Audio Source 4

While MRGL A is the correct MRGL for Phone A, Audio Source 4 is not necessarily the one selected if Audio Source 2 is the specified or available option within MRGL A.

BMRGL B and Audio Source 4

MRGL B would be associated with Phone B, the holding party, not Phone A, the held party, thus making the MRGL selection incorrect.

CMRGL B and Audio Source 2

MRGL B would be associated with Phone B, the holding party, not Phone A, the held party, thus making the MRGL selection incorrect.

DMRGL A and Audio Source 2Correct

When one party places another on hold in Cisco UCM, the Music On Hold (MOH) is streamed from the MOH server that is associated with the Media Resource Group List (MRGL) configured for the *held party*. Therefore, Phone A's MRGL (MRGL A) is used to determine and play an available MOH Audio Source (Audio Source 2) to Phone A.

Concept tested: Cisco UCM Music On Hold (MOH) MRGL selection

Source: https://www.cisco.com/c/en/us/td/docs/voice_ip_storage/cucm/admin/11_5_1/systemConfig/CUCM_BK_C614217F_00_cucm-system-configuration-guide-115/CUCM_BK_C614217F_00_cucm-system-configuration-guide-115_chapter_0101.html

Topics

#Music On Hold#Media Resource Group List#Call Hold#Audio Source
