350-801 · Question #253

Refer to the exhibit. An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic. Which change must the engineer make in the configuration?

The correct answer is B. bandwidth 170 to priority 170. To implement Low Latency Queuing (LLQ) for voice traffic within a QoS policy-map, the priority command with a specified bandwidth value is used to reserve a strict priority queue.

Infrastructure and Quality of Service

Question

Refer to the exhibit. An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic. Which change must the engineer make in the configuration?

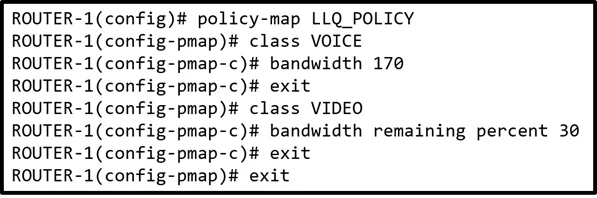

Exhibit

350-801 question #253 exhibit

Options

  • Abandwidth 170 to LLQ 170
  • Bbandwidth 170 to priority 170
  • Cbandwidth 170 to reserve 170
  • Dbandwidth 170 to percent 170

How the community answered

(33 responses)
  • A
    6% (2)
  • B
    91% (30)
  • D
    3% (1)

Why each option

To implement Low Latency Queuing (LLQ) for voice traffic within a QoS policy-map, the `priority` command with a specified bandwidth value is used to reserve a strict priority queue.

Abandwidth 170 to LLQ 170

The term `LLQ` itself is a feature, not a command used to replace `bandwidth` in a policy-map for configuration; `priority` is the correct command for strict priority queuing.

Bbandwidth 170 to priority 170Correct

The `priority` command within a Cisco policy-map is specifically used to configure Low Latency Queuing (LLQ), which provides strict priority queuing for time-sensitive traffic like voice. When `priority <bandwidth>` is applied to a class, it ensures that traffic belonging to that class is serviced before any other queues, up to the specified bandwidth, thereby minimizing delay and jitter for critical voice traffic.

Cbandwidth 170 to reserve 170

The `reserve` command is not a standard QoS command used in policy-maps to implement LLQ; `priority` is the correct command for strict priority queuing.

Dbandwidth 170 to percent 170

The `percent` keyword is typically used with the `bandwidth` command (e.g., `bandwidth percent 170`) to allocate a percentage of available bandwidth, which is not what LLQ achieves, as LLQ provides strict priority, not just a guaranteed percentage.

Concept tested: Cisco QoS Low Latency Queuing (LLQ) configuration

Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_congest/configuration/xe-16-7/qos-congest-xe-16-7-book/qos-congest-xe-16-7-book_chapter_010.html

Topics

#QoS#LLQ#Policy-map#Voice traffic
