350-701 · Question #789
Refer to the exhibit. An engineer must configure a remote access VPN connection between a teleworker and SiteB. The engineer already performed some configurations on the Cisco Adaptive Security…
The correct answer is A. 40.40.40.0/24. For a remote access VPN configuration, the ASA assigns a pool of IP addresses to remote users once they connect to the VPN. This address pool should be unique and not overlap with existing networks, such as the internal network at SiteB (192.168.11.0/24), the teleworker's…
Question

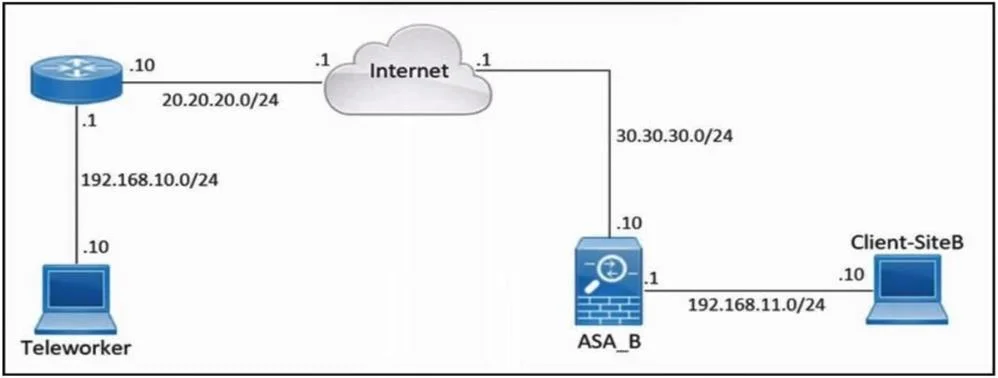

Refer to the exhibit. An engineer must configure a remote access VPN connection between a teleworker and SiteB. The engineer already performed some configurations on the Cisco Adaptive Security Appliance ASA_B firewall. Which address pool must be assigned to the tunnel group to complete the configurations?
Exhibit
Options
- A40.40.40.0/24
- B20.20.20.0/24
- C192.168.11.0/24
- D30.30.30.0/24
How the community answered
(36 responses)- A72% (26)
- B6% (2)
- C14% (5)
- D8% (3)
Explanation
For a remote access VPN configuration, the ASA assigns a pool of IP addresses to remote users once they connect to the VPN. This address pool should be unique and not overlap with existing networks, such as the internal network at SiteB (192.168.11.0/24), the teleworker's network (192.168.10.0/24), or the external networks (20.20.20.0/24 and 30.30.30.0/24). 40.40.40.0/24 is the most appropriate choice as it is unique and does not conflict with any other network in the topology.
Topics
Community Discussion
No community discussion yet for this question.
