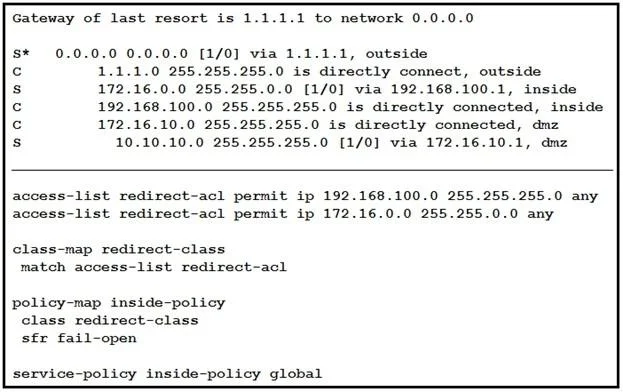

Refer to the exhibit. What is a result of the configuration?

The correct answer is D. Traffic from the inside and DMZ networks is redirected.. Traffic from both inside and DMZ networks is redirected. Inside networks are 192.168.100.0/24 and 172.16.0.0/16 DMZ network is 172.16.10.0/24 The redirect acl is permitting 192.168.100.0/24 and 172.16.0.0/16 (which also includes 172.16.10.0/24 --> traffic from DMZ networks)

Submitted by suresh_in· Mar 30, 2026

Question

Exhibit

Options

ATraffic from the DMZ network is redirected.
BTraffic from the inside network is redirected.
CAll TCP traffic is redirected.
DTraffic from the inside and DMZ networks is redirected.

How the community answered

(21 responses)

A
5% (1)
B
10% (2)
C
5% (1)
D
81% (17)

Explanation

Traffic from both inside and DMZ networks is redirected. Inside networks are 192.168.100.0/24 and 172.16.0.0/16 DMZ network is 172.16.10.0/24 The redirect acl is permitting 192.168.100.0/24 and 172.16.0.0/16 (which also includes 172.16.10.0/24 --> traffic from DMZ networks)

Topics

#Cisco firewall configuration#Network security zones#Traffic redirection#Access control lists (ACLs)
