350-601 · Question #705
Refer to the exhibit. An engineer is implementing zoning on two Cisco MDS switches. After the implementation is finished, E Ports that connect the two Cisco MDS switches become isolated. What is…
The correct answer is C. Zones must have the same name on both MDS switches for the E Ports to function. A E port will segment with (isolation due to zone merge failure) if the following are true. - If the active zoneset is different on the two switches. - If the active zoneset on both switches contain a zone with the same name but with different ooting/guide/tsht03.html#wp7324
Question
Refer to the exhibit. An engineer is implementing zoning on two Cisco MDS switches. After the implementation is finished, E Ports that connect the two Cisco MDS switches become isolated. What is wrong with the implementation?

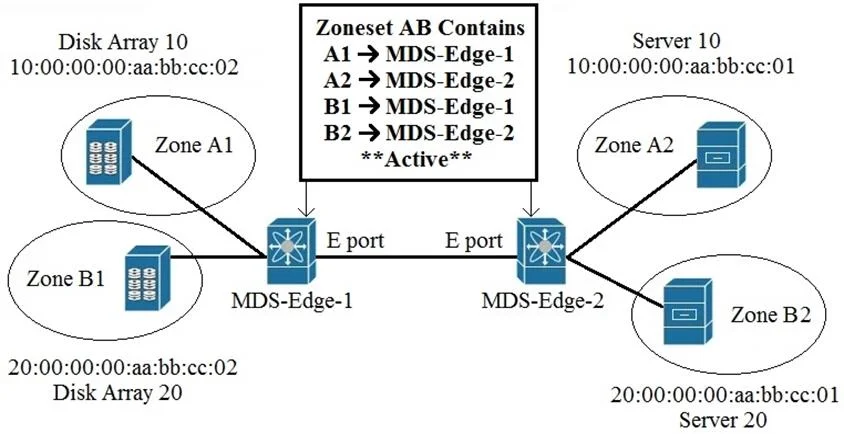

Exhibit
Options
- AZones are local to the MDS switch and name service must be used to activate the connection
- BDifferent zone set names must be configured on both MDS switches.
- CZones must have the same name on both MDS switches for the E Ports to function.
- DE Ports on both MDS switches must be configured as F Ports for the zoning to function.
How the community answered
(54 responses)- A9% (5)
- B6% (3)
- C83% (45)
- D2% (1)
Explanation
A E port will segment with (isolation due to zone merge failure) if the following are true. - If the active zoneset is different on the two switches. - If the active zoneset on both switches contain a zone with the same name but with different ooting/guide/tsht03.html#wp7324
