An engineer implements SPAN configuration on an Nexus 5000 series switch. Which two commands are necessary to complete the SPAN session configuration? (Choose two)

Question

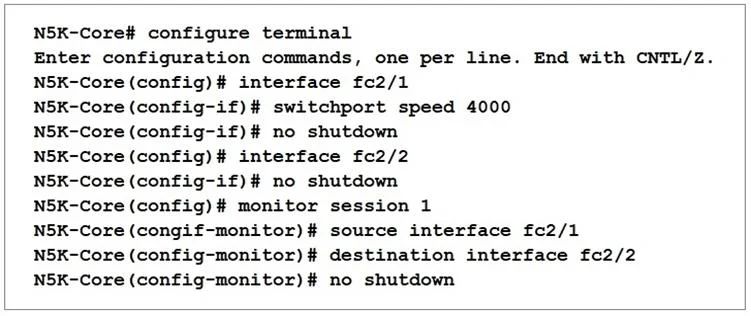

Exhibit

Options

• AConfigure the switchport monitor under interface fc2/2
• BConfigure the switchport mode SD under interface tc2/1.
• CConfigure switchport speed 4000 under interface fc2/2.
• DConfigure session type fc under monitor session 1.
• EConfigure the switchport mode SD under interface fc2/2.

• A
  6% (3)
• B
  2% (1)
• C
  81% (43)
• D
  11% (6)

Explanation

When configuring a Fibre Channel SPAN session on a Cisco Nexus 5000, the SPAN destination port (the port where the analyzer is connected) requires two specific interface-level configurations: (E) 'switchport mode SD' - sets the port to SPAN Destination (SD) mode so it only forwards mirrored traffic to the analyzer, and (C) 'switchport speed 4000' - sets the port speed to match the FC speed of the monitored traffic (4 Gbps in this case), ensuring the destination port can handle the mirrored traffic without drops. Options A and B are incorrect because 'monitor' or 'SD' is not configured under fc2/2 (the source port). Option D ('session type fc') is not valid NX-OS SPAN syntax; the session type is defined differently in the monitor session configuration.
