350-601 · Question #136
An engineer must configure a named VSAN when the fabric interconnect is in Fibre Channel switch mode The VSAN must meet these requirements: - Named VSAN must be called";VSAN 1";. - VSAN ID must be…
The correct answer is A. Option A. To configure a named VSAN with specific ID and FCoE ID and attach it to a Fibre Channel port on a Fabric Interconnect in FC switch mode, precise VSAN database commands followed by interface configuration are required.
Question
An engineer must configure a named VSAN when the fabric interconnect is in Fibre Channel switch mode The VSAN must meet these requirements:
- Named VSAN must be called";VSAN 1";.
- VSAN ID must be 10.
- FCoE ID must be 20.
- VSAN 10 must be attached to port 2 in slot 1.
Which command set configures a VSAN when the fabric interconnect is in Fibre Channel switch mode?

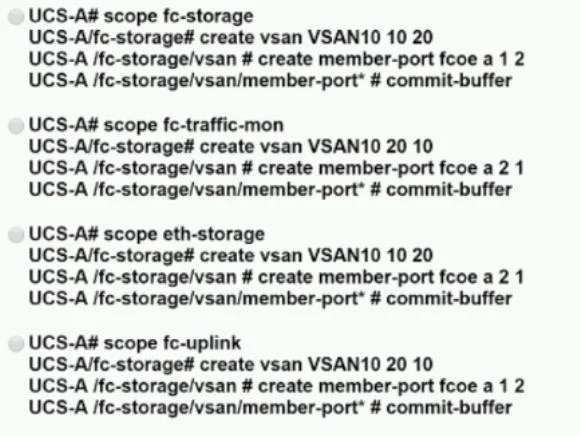

Exhibit
Options
- AOption A
- BOption B
- COption C
- DOption D
How the community answered
(40 responses)- A83% (33)
- B5% (2)
- C3% (1)
- D10% (4)
Why each option
To configure a named VSAN with specific ID and FCoE ID and attach it to a Fibre Channel port on a Fabric Interconnect in FC switch mode, precise VSAN database commands followed by interface configuration are required.
Option A correctly uses the `vsan database` context to define the VSAN ID (10), assign its name ("VSAN 1"), and specify the FCoE ID (20), then correctly applies this VSAN to the specified Fibre Channel port fc1/2 using `switchport access vsan 10`.
Option B likely misconfigures the VSAN ID, name, or FCoE ID within the VSAN database, or incorrectly applies the VSAN to the interface, preventing the desired setup.
Option C probably contains incorrect command syntax, places commands in the wrong hierarchy, or omits critical configuration elements required to correctly define and assign the VSAN.
Option D fails to meet the requirements by either not correctly specifying the named VSAN, misconfiguring the FCoE ID, or failing to properly associate VSAN 10 with the designated Fibre Channel port.
Concept tested: Cisco UCS Fibre Channel VSAN configuration
Source: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/3-1/b_UCSM_GUI_Configuration_Guide_3_1/b_UCSM_GUI_Configuration_Guide_3_1_chapter_0110.html
