Refer to the exhibit. Service degradation is reported on a VM that is deployed on a Cisco UCS blade server. The traffic from the vNIC is required to SPAN in both directions to a packet analyzer that…

Question

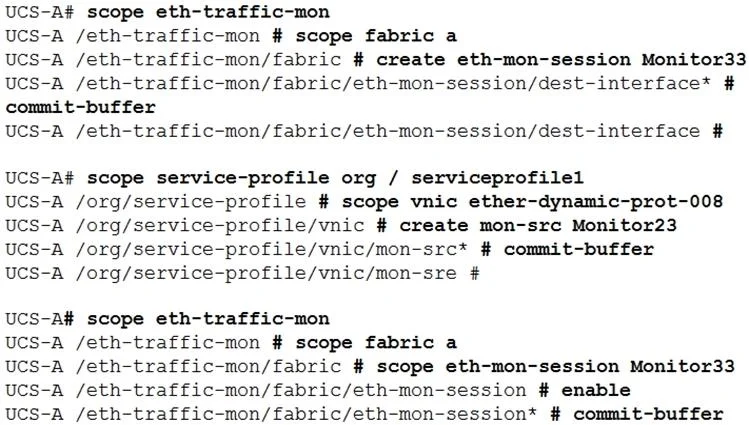

Exhibit

Options

• AUCS-A /org/service-profile/vnic/mon-src* # set direction both
• BUCS-A /eth-traffic-mon/fabric/eth-mon-session' # create dest-interface 2 12
• CUCS-A /org/service-profile/vnic/mon-src* # set direction receive transmit
• DUCS-A /eth-traffic-mon/fabric/eth-mon-session # activate
• EUCS-A /eth-traffic-mon/fabric/eth-mon-session* # create eth-mon-session/dest-interface 2 12

• A
  70% (19)
• C
  4% (1)
• D
  7% (2)
• E
  19% (5)

Explanation

To configure SPAN in Cisco UCS for a vNIC source in both directions, two commands are required. First, 'set direction both' (A) configures the SPAN monitor source on the vNIC to capture traffic in both transmit and receive directions. Second, 'create dest-interface 2 12' (B) defines the physical destination interface (fabric A, slot 2, port 12) where the captured traffic will be sent to the packet analyzer. Option C uses incorrect syntax ('receive transmit' instead of 'both'). Option D activates a session but is not required if already shown in the exhibit. Option E uses an incorrect command path for creating the destination interface.
