350-501 · Question #509
Refer to the exhibit. A network engineer is configuring Ethernet Layer 2 service to connect CE2 and CE3 for video and data application sharing with these requirements: - A point-to-point…
The correct answer is B. l2vpn. To establish a point-to-point (P2P) Layer 2 VPN service, you need to configure a Virtual Circuit (VC) using xconnect on PE1 that links the GigabitEthernet interface to its neighbor's corresponding interface. Here's how this configuration satisfies the requirements: 1. l2vpn…
Question
Refer to the exhibit. A network engineer is configuring Ethernet Layer 2 service to connect CE2 and CE3 for video and data application sharing with these requirements:
- A point-to-point cross-connect services must be established between
10.10.10.10 and 20.20.20.20.
- PE1 and PE2 must learn neighbors dynamically in PW 10.
Which configuration must be implemented on PE1 to meet the requirements?

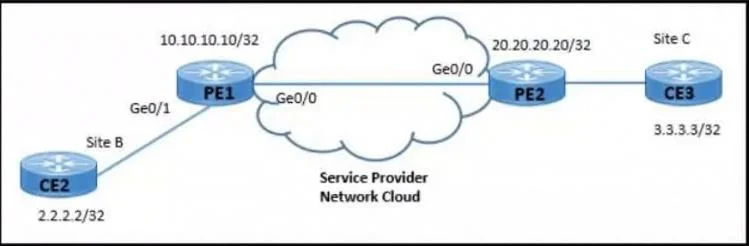

Exhibit
Options
- Al2vpn
- Bl2vpn
- Cxconnect group XCON1
- Dl2vpn
How the community answered
(53 responses)- A4% (2)
- B72% (38)
- C17% (9)
- D8% (4)
Explanation
To establish a point-to-point (P2P) Layer 2 VPN service, you need to configure a Virtual Circuit (VC) using xconnect on PE1 that links the GigabitEthernet interface to its neighbor's corresponding interface. Here's how this configuration satisfies the requirements: 1. l2vpn xconnect group: Defines the Layer 2 VPN context under which the P2P connection is 2. p2p XCON1_PE1PE2: Specifies the P2P connection identifier for the VC. 3. interface GigE 0/1: Maps the local interface to be part of the P2P cross-connect. 4. neighbor 20.20.20.20: Specifies the remote PE router's IP address that participates in the VC. 5. pw-id 10: Assigns the pseudowire ID, enabling the dynamic discovery of the neighbor for the Layer 2 cross-connect. This configuration achieves the requirement to dynamically learn neighbors in Pseudowire (PW) 10 and establishes the desired P2P Ethernet service between CE2 and CE3.
Topics
Community Discussion
No community discussion yet for this question.
