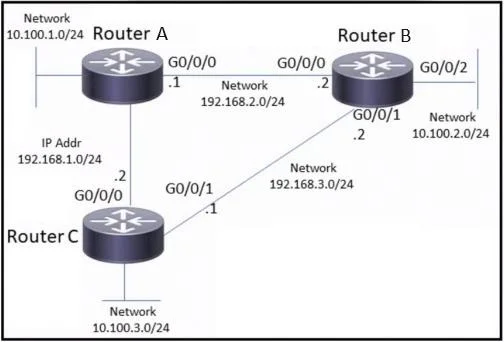

Refer to the exhibit. A network engineer must block Telnet traffic from hosts in the range of 10.100.2.248 to 10.100.2.255 to the network 10.100.3.0 and permit everything else. Which configuration mus

Question

Exhibits

Options

• ARouterB(config)# access-list 101 permit tcp 10.100.2.0 0.0.0.252 10.100.3.0 0.0.0.255 RouterB(config)# int gi0/0/2 RouterB(config-if)# ip access-group 101 in
• BRouterB(config)# access-list 101 deny tcp 10.100.2.0 0.0.0.248 10.100.3.0 0.0.0.255 eq 23 RouterB(config)# access-list 101 permit any any RouterB(config)# int gi0/0/2 RouterB(config-if)# ip access-group 101 in
• CRouterB(config)# access-list 101 deny tcp 10.100.2.0 0.0.0.248 10.100.3.0 0.0.0.255 eq 22 RouterB(config)# access-list 101 permit any any RouterB(config)# int gi0/0/2 RouterB(config-if)# ip access-group 101 in
• DRouterB(config)# access-list 101 deny icmp 10.100.2.0 0.0.0.248 10.100.2.0 0.0.0.248 RouterB(config)# access-list 101 permit any any RouterB(config)# int gi0/0/2 RouterB(config-if)# ip access-group 101 in

• A
  5% (1)
• B
  80% (16)
• C
  5% (1)
• D
  10% (2)

Explanation

Option B is correct because it uses ACL 101 to deny TCP traffic (port 23 = Telnet) from the host range 10.100.2.248–10.100.2.255, which is correctly represented by the wildcard mask 0.0.0.7 matched against the base address 10.100.2.248 - however, the ACL uses 10.100.2.0 with wildcard 0.0.0.248, which in binary correctly matches only addresses where the last 3 bits are 1s (i.e., .248–.255). The second statement 'permit any any' ensures all other traffic is allowed, and applying it inbound on gi0/0/2 intercepts traffic from that subnet before it reaches the destination network 10.100.3.0/24.
