350-029 · Question #502
Refer to the exhibit. MPLS VPN service has been provisioned for customer ABC using an inter- AS MPLS option C. A network admin on ISP1 decided not to redistribute ISP2 received loopback addresses…
The correct answer is D. configure on RR1 BGP IPv4 address-family neighbor 1.1.1.1 send-label E. configure on RR1 BGP IPv4 address-family neighbor 3.3.3.3 send-label G. configure on ASBR1 BGP IPv4 address-family neighbor 7.7.7.7 send-label H. configure on ASBR1 BGP IPv4 address-family neighbor 7.7.7.7 next-hop-self J. configure on PE1 BGP IPv4 address-family neighbor 7.7.7.7 next-hop-self. See the full explanation below for the reasoning.
Question
Refer to the exhibit. MPLS VPN service has been provisioned for customer ABC using an inter- AS MPLS option C. A network admin on ISP1 decided not to redistribute ISP2 received loopback addresses into IGP. Which five commands can be configured to guarantee an end-to-end connectivity between ABC sites? (Choose five.)

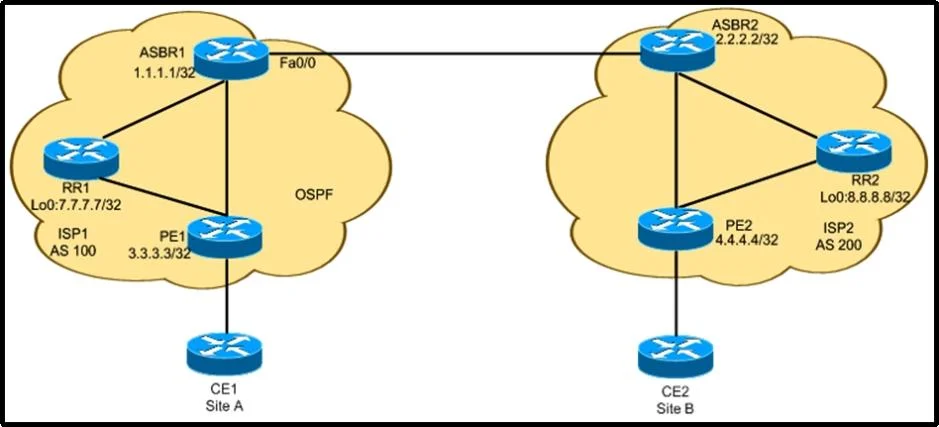

Exhibit
Options
- Aconfigure on ASBR1 BGP VPNv4 address-family neighbor 7.7.7.7 send-label
- Bconfigure on ASBR1 BGP VPNv4 address-family neighbor 7.7.7.7 next-hop-self
- Cconfigure on RR1 BGP VPNv4 address-family neighbor 1.1.1.1 send-label
- Dconfigure on RR1 BGP IPv4 address-family neighbor 1.1.1.1 send-label
- Econfigure on RR1 BGP IPv4 address-family neighbor 3.3.3.3 send-label
- Fconfigure on RR1 BGP VPNv4 address-family neighbor 3.3.3.3 send-label
- Gconfigure on ASBR1 BGP IPv4 address-family neighbor 7.7.7.7 send-label
- Hconfigure on ASBR1 BGP IPv4 address-family neighbor 7.7.7.7 next-hop-self
- Jconfigure on PE1 BGP IPv4 address-family neighbor 7.7.7.7 next-hop-self
How the community answered
(27 responses)- A15% (4)
- C4% (1)
- D74% (20)
- F7% (2)
Community Discussion
No community discussion yet for this question.
