F5
303 · Question #351
Refer to the exhibits. Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server. Return traffic bypasses the LTM…
The correct answer is E. Configure the VIP address on the loopback interface of the web server. See the full explanation below for the reasoning.
Question
Refer to the exhibits. Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server. Return traffic bypasses the LTM device using Layer 2 nPath routing. Which configuration change resolves this problem?

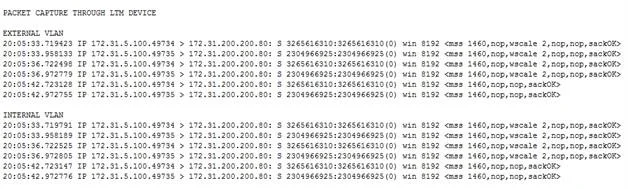

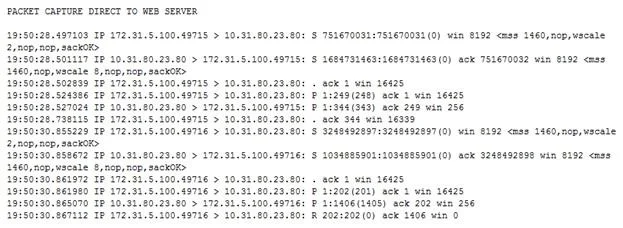

Exhibits
Options
- AEnable a SNAT pool on the LTM device.
- BDisable address translation on the LTM device.
- CConfigure a route on the web server to the client subnet.
- DConfigure the virtual server to listen on port 80 on the LTM device.
- EConfigure the VIP address on the loopback interface of the web server.
How the community answered
(52 responses)- A2% (1)
- B12% (6)
- C2% (1)
- D6% (3)
- E79% (41)
Community Discussion
No community discussion yet for this question.
