303 · Question #341
Refer to the exhibits. An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does…
The correct answer is A. Pool member is configured to use wrong port. See the full explanation below for the reasoning.
Question
Refer to the exhibits. An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does work when accessed directly via the application servers. The virtual server 192.168.1.211:443 is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. No Client or Server SSL profiles are associated. The LTM Specialist has collected two traffic captures to help determine the issue. What is the problem with the configuration on the LTM device?

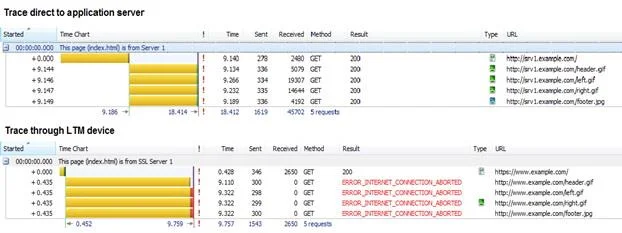

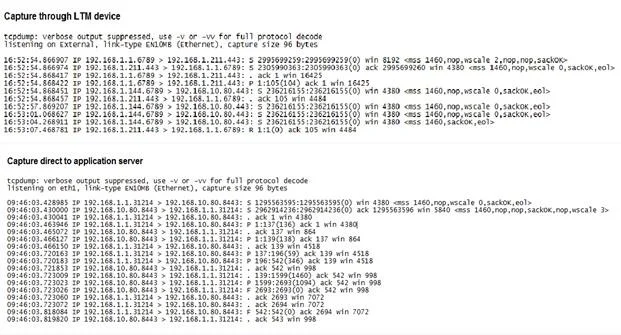

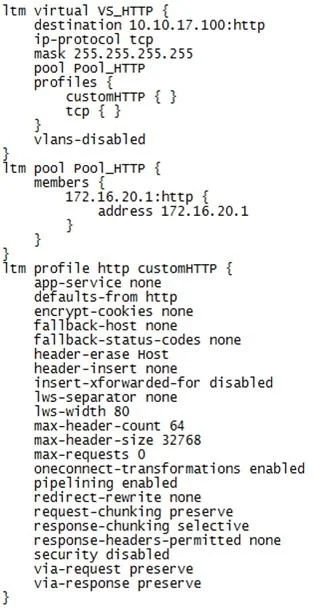

Exhibits
Options
- APool member is configured to use wrong port.
- BPool member is configured for SSL off-loading.
- CVirtual server is configured to use wrong port.
- DVirtual server is configured without SSL Profiles.
How the community answered
(30 responses)- A73% (22)
- B17% (5)
- C7% (2)
- D3% (1)
Community Discussion
No community discussion yet for this question.
