300-620 · Question #281

Refer to the exhibit. An engineer is deploying a Cisco ACI fabric with an L2Out to external switches. The Cisco ACI fabric has just been deployed and follows the default forwarding behavior. Which…

The correct answer is A. Add ports Eth1/1 and Eth1/2 to the LACP port channel. C. Disconnect the link between Leaf3 and Leaf4. To achieve a loop-free topology in a Cisco ACI fabric with an L2Out, redundant links must be aggregated into an LACP port channel or physically disconnected.

External Network Connectivity

Question

Refer to the exhibit. An engineer is deploying a Cisco ACI fabric with an L2Out to external switches. The Cisco ACI fabric has just been deployed and follows the default forwarding behavior. Which two actions accomplish a loop free topology? (Choose two.)

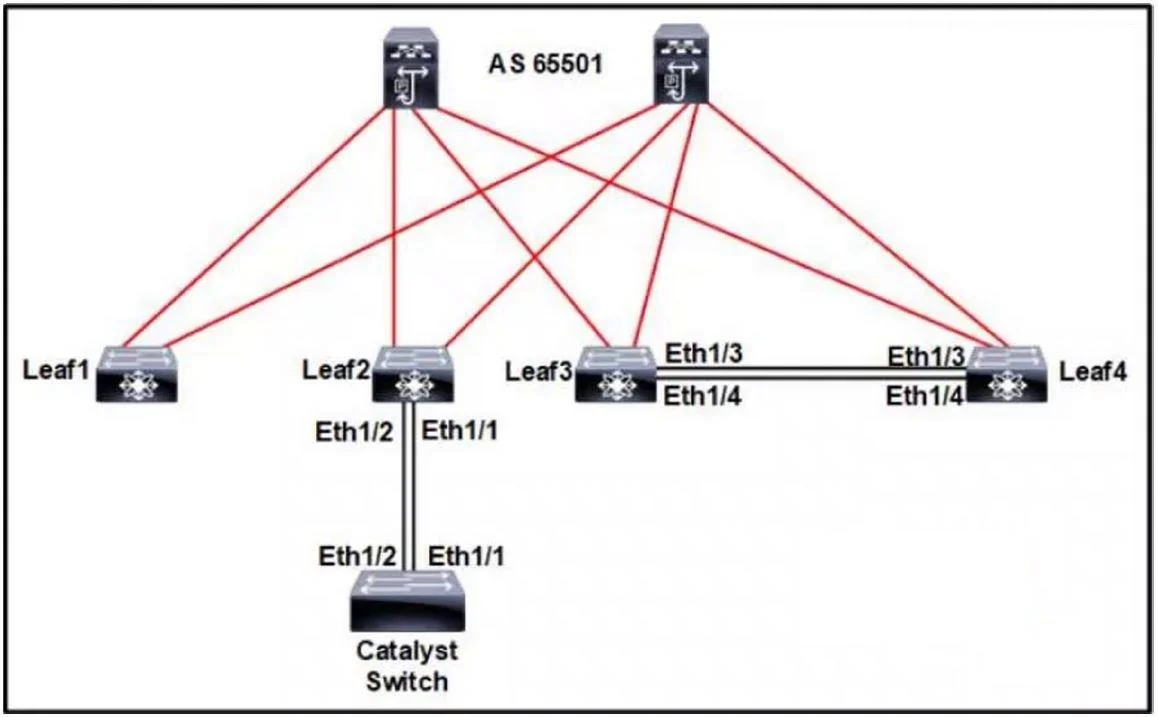

Exhibit

300-620 question #281 exhibit

Options

  • AAdd ports Eth1/1 and Eth1/2 to the LACP port channel.
  • BEnable MCP on the ports between the leafs and spine switches.
  • CDisconnect the link between Leaf3 and Leaf4.
  • DImplement LLDP on ports Eth1/1 and Eth1/2 on Leaf2.
  • EConfigure BPDU guard on Catalyst switch ports.

How the community answered

(54 responses)
  • A
    76% (41)
  • B
    4% (2)
  • D
    7% (4)
  • E
    13% (7)

Why each option

To achieve a loop-free topology in a Cisco ACI fabric with an L2Out, redundant links must be aggregated into an LACP port channel or physically disconnected.

AAdd ports Eth1/1 and Eth1/2 to the LACP port channel.Correct

Adding ports Eth1/1 and Eth1/2 to an LACP port channel bundles these physical links into a single logical link, eliminating Layer 2 loops while providing redundancy and increased bandwidth to the external switch.

BEnable MCP on the ports between the leafs and spine switches.

Enabling MCP (Multi-Chassis Port Channel) is generally for managing multi-chassis link aggregation groups and is not typically used for direct loop prevention between single leaf switches and external devices in an L2Out.

CDisconnect the link between Leaf3 and Leaf4.Correct

Disconnecting the link between Leaf3 and Leaf4 directly removes a potential Layer 2 loop path if both leafs are connected to the same external switch and participating in the same L2Out.

DImplement LLDP on ports Eth1/1 and Eth1/2 on Leaf2.

Implementing LLDP on ports is a discovery protocol and does not directly prevent Layer 2 forwarding loops; it only helps identify connected devices.

EConfigure BPDU guard on Catalyst switch ports.

Configuring BPDU guard on Catalyst switch ports is a reactive measure to disable a port upon receiving a BPDU, preventing a rogue loop, but it does not proactively design a loop-free topology.

Concept tested: Cisco ACI L2Out loop prevention

Source: https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/l2-configuration/cisco-aci-layer2-configuration-guide-501/m-layer-2-external-networks.html

Topics

#L2Out#loop prevention#STP#external connectivity
