300-620 · Question #270

Refer to the exhibit. The default route is not present in the routing tables of the Cisco ACI leaf switches. All static and direct routes are currently being redistributed and advertised. Which…

The correct answer is C. Create a Default Route Leak Policy on the L3Out. To advertise a default route on an ACI eBGP L3Out, a 'Default Route Leak Policy' must be created and associated with the L3Out configuration.

External Network Connectivity

Question

Refer to the exhibit. The default route is not present in the routing tables of the Cisco ACI leaf switches. All static and direct routes are currently being redistributed and advertised. Which action must be taken to advertise a default route on the eBGP L3Out?

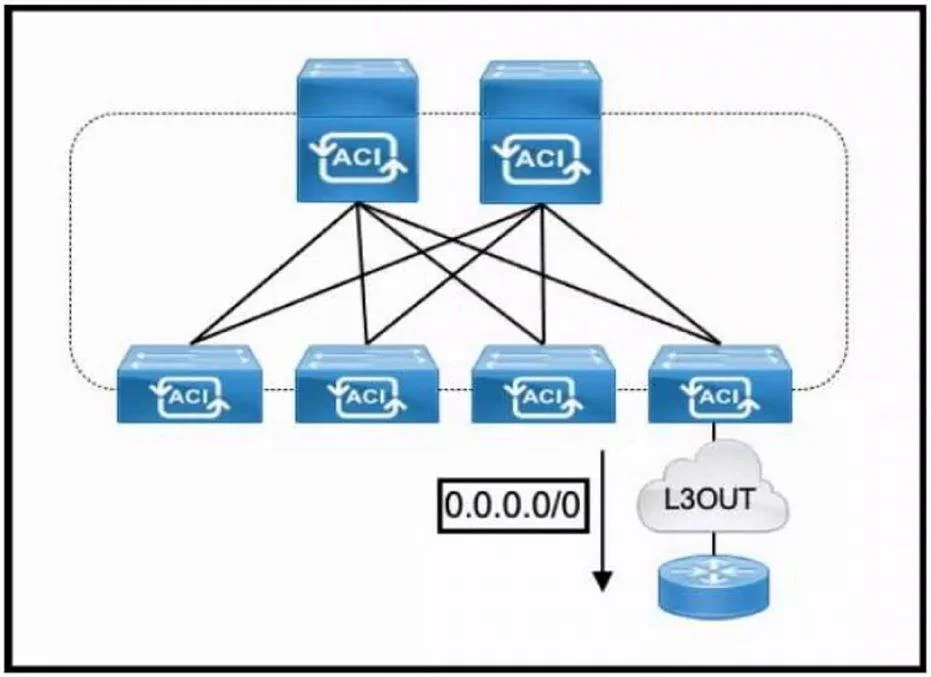

Exhibit

300-620 question #270 exhibit

Options

  • AEnable a BGP peer prefix policy set to Always.
  • BConfigure a static default route on the ACI node profiles with next-hop null.
  • CCreate a Default Route Leak Policy on the L3Out.
  • DImplement an export route map matching 0.0.0.0/0.

How the community answered

(24 responses)
  • C
    96% (23)
  • D
    4% (1)

Why each option

To advertise a default route on an ACI eBGP L3Out, a 'Default Route Leak Policy' must be created and associated with the L3Out configuration.

AEnable a BGP peer prefix policy set to Always.

Enabling a BGP peer prefix policy set to Always helps manage prefix advertisement, but it does not inherently generate or leak a default route that is not already present or explicitly configured to be leaked.

BConfigure a static default route on the ACI node profiles with next-hop null.

Configuring a static default route with a next-hop of null on ACI node profiles is typically used for blackholing traffic, not for advertising a default route to external peers.

CCreate a Default Route Leak Policy on the L3Out.Correct

In Cisco ACI, the advertisement of a default route (0.0.0.0/0) out of an L3Out requires an explicit 'Default Route Leak Policy'. This policy is configured on the L3Out to instruct the ACI fabric to generate and advertise a default route to its external BGP peers, even if the default route is not internally present in the leaf routing tables as a directly learned route.

DImplement an export route map matching 0.0.0.0/0.

Implementing an export route map matching 0.0.0.0/0 would be effective if a default route was already present and being considered for export, but in ACI, the default route often needs to be explicitly 'leaked' into the L3Out for advertisement.

Concept tested: Cisco ACI L3Out default route advertisement

Source: https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/sw/l3-configuration/b-cisco-aci-layer-3-configuration-guide-5x/m-default-route-leak-policy.html

Topics

#L3Out#BGP#default route advertisement#route leak policy
