300-620 · Question #193
Refer to the exhibit. The 0.0.0.0/0 is configured as a default static route on L3Out-1. Which action should be taken for the 0.0.0.0/0 prefix to advertise out on L3Out-2 OSPF?
The correct answer is A. Enable Export Route Control Subnet.. Aggregate Export This option can be used only for 0.0.0.0/0 with “Export Route Control Subnet”. When both “Export Route Control Subnet” and “Aggregate Export” are enabled for 0.0.0.0/0, ACI creates an IP prefix-list with “0.0.0.0/0 le 32”, which matches any subnets. Thus, this op
Question
Refer to the exhibit. The 0.0.0.0/0 is configured as a default static route on L3Out-1. Which action should be taken for the 0.0.0.0/0 prefix to advertise out on L3Out-2 OSPF?

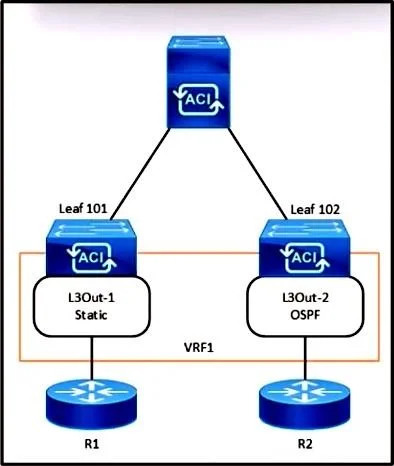

Exhibit
Options
- AEnable Export Route Control Subnet.
- BEnable Shared Security Import Subnet.
- CEnable Shared Route Control Subnet.
- DEnable Aggregate Export Subnet.
How the community answered
(41 responses)- A71% (29)
- B5% (2)
- C15% (6)
- D10% (4)
Explanation
Aggregate Export This option can be used only for 0.0.0.0/0 with “Export Route Control Subnet”. When both “Export Route Control Subnet” and “Aggregate Export” are enabled for 0.0.0.0/0, ACI creates an IP prefix-list with “0.0.0.0/0 le 32”, which matches any subnets. Thus, this option can be used when an L3Out needs to advertise (export) any routes to the outside.
Topics
Community Discussion
No community discussion yet for this question.
