300-620 · Question #190

Refer to the exhibit. The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1". Which configuration set accomplishes these goals

The correct answer is B. External Subnets for External EPG. To enable communication between an external subnet and an internal EPG via an L3Out, and ensure L3Out traffic is recognized within a VRF, the external subnets must be defined.

External Network Connectivity

Question

Refer to the exhibit. The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1". Which configuration set accomplishes these goals?

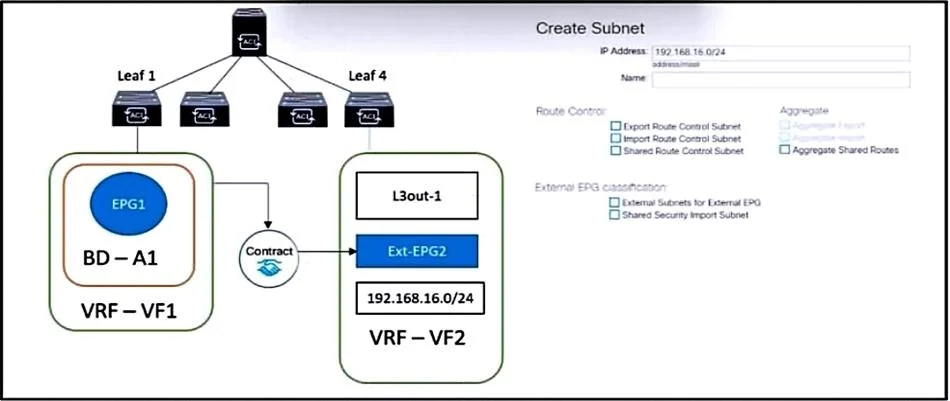

Exhibit

300-620 question #190 exhibit

Options

  • AExport Route Control Subnet
  • BExternal Subnets for External EPG
  • CExternal Subnets for External EPG
  • DExport Route Control Subnet

How the community answered

(41 responses)
  • A
    7% (3)
  • B
    71% (29)
  • C
    17% (7)
  • D
    5% (2)

Why each option

To enable communication between an external subnet and an internal EPG via an L3Out, and ensure L3Out traffic is recognized within a VRF, the external subnets must be defined.

AExport Route Control Subnet

'Export Route Control Subnet' is a specific setting often used for inter-VRF route leaking or advertising routes out from ACI, not the primary mechanism to define external subnets for basic L3Out communication within a VRF.

BExternal Subnets for External EPGCorrect

Configuring 'External Subnets for External EPG' is the specific action within an L3Out policy to define the IP prefixes of the external network. These subnets are then associated with a contract to allow communication with internal EPGs like EPG1, and are made available within the VRF (VF1) that the L3Out is associated with, fulfilling both communication and 'leaking' requirements.

CExternal Subnets for External EPG

This is a duplicate option of 'B'.

DExport Route Control Subnet

This is a duplicate option of 'A'.

Concept tested: Cisco ACI L3Out external subnet configuration

Source: https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/p_guide/cisco-aci-programming-guide-501/m-l3-external-networks-501.html

Topics

#L3Out configuration#external subnet#EPG communication#VRF route leaking#External Subnets for External EPG

Community Discussion

No community discussion yet for this question.
