300-535 Question #90: Real Exam Question with Answer & Explanation

The correct answer is B. Increase the threshold in the bw-on-demand configuration to be more than 30%.. The util-threshold in the bw-on-demand configuration is currently set to 10.0, which means paths will only be considered if link utilization is below 10%. Since the average utilization is around 20%, no suitable path is found. Increasing the threshold to above 20% allows Cisco WA

Question

Refer to the exhibit. Cisco NSO uses the Bandwidth on Demand application in Cisco WAE Automation Server to find a path for the SR policies that are being delegated in the network. Based on the data that is collected from the network, the average utilization of the links is around 20%. When a network operator initiates a new service instance in Cisco NSO that requires around 10% of available bandwidth, Cisco WAE cannot find a path in the network. How should a network operator solve the problem?

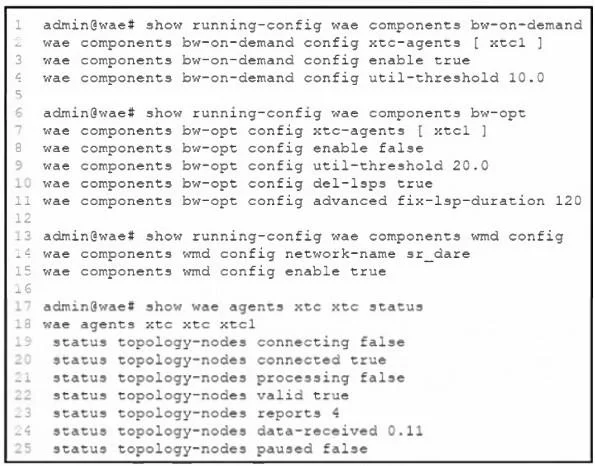

Exhibit

300-535 question #90 exhibit

Options

  • ADisable the WMD component, which prevents using the near real-time network model.
  • BIncrease the threshold in the bw-on-demand configuration to be more than 30%.
  • CEnable XTC to process the data that is received from the network.
  • DEnable the Bandwidth Optimization application to perform network bandwidth optimization.

Explanation

The util-threshold in the bw-on-demand configuration is currently set to 10.0, which means paths will only be considered if link utilization is below 10%. Since the average utilization is around 20%, no suitable path is found. Increasing the threshold to above 20% allows Cisco WAE to consider paths with higher utilization, enabling path selection for the new service instance.
