300-440 Question #24: Real Exam Question with Answer & Explanation

The correct answer is B. router bgp 100 C. redistribute ospf 1. Based on the exhibits provided, the goal is to redistribute OSPF internal routes into BGP on Looking at the configuration and the diagram: - R2 is the boundary router between OSPF Area 1 and the BGP AS 100 peering with R3. - To send routes from OSPF into BGP, you must enter the B

Question

Refer to the exhibits. An engineer must redistribute OSPF internal routes into BGP to connect an on-premises network to a cloud provider without introducing extra routes. Which two commands must be configured on router R2? (Choose two.)

Exhibits

Options

Arouter ospf 1
Brouter bgp 100
Credistribute ospf 1
Dredistribute bgp 100
Eredistribute ospf 1 match internal external

Explanation

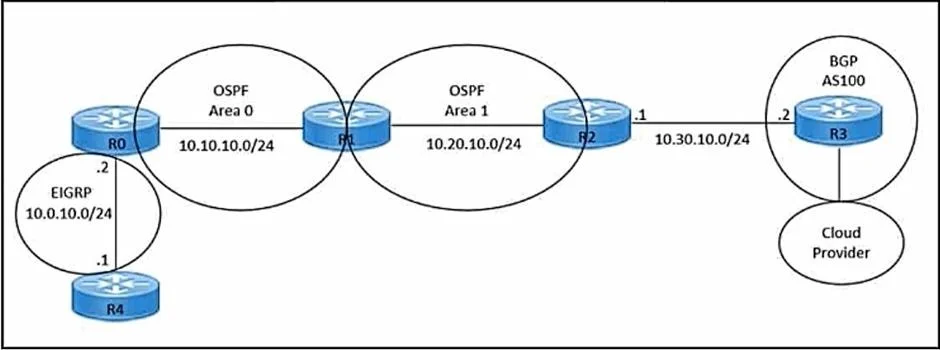

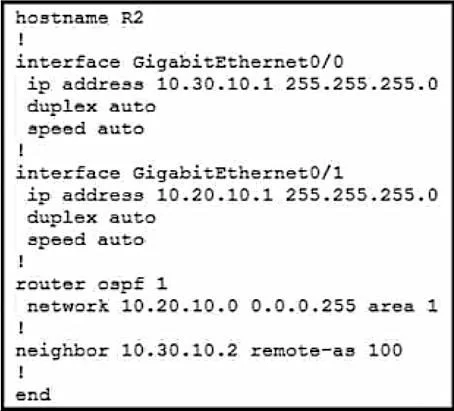

Based on the exhibits provided, the goal is to redistribute OSPF internal routes into BGP on Looking at the configuration and the diagram: - R2 is the boundary router between OSPF Area 1 and the BGP AS 100 peering with R3. - To send routes from OSPF into BGP, you must enter the BGP configuration mode and use the redistribute command targeting the OSPF process. router bgp 100: You must first enter the BGP configuration mode for the local Autonomous System. According to the neighbor 10.30.10.2 remote-as 100 command in the exhibit, R2 is peering with AS 100. (Note: In a real-world scenario, R2 would likely have its own AS number, but within the context of these certification-style questions, you enter the BGP routing process to apply redistribution). redistribute ospf 1: This is the standard command used within the BGP process to pull in OSPF routes. By default, when OSPF is redistributed into BGP, it only includes internal routes (intra- area and inter-area).
