300-430 · Question #249

Refer to the exhibit. An engineer must preserve a QoS marking sent by the Cisco Jabber software running on PC1. Which marking value must be trusted on port Fa 0/6?

The correct answer is A. DSCP. Cisco Jabber is a software application running on a PC endpoint, which marks traffic at Layer 3 using DSCP in the IP header, so the switch port must be configured to trust DSCP to preserve those markings.

QoS on a Wireless Network

Question

Refer to the exhibit. An engineer must preserve a QoS marking sent by the Cisco Jabber software running on PC1. Which marking value must be trusted on port Fa 0/6?

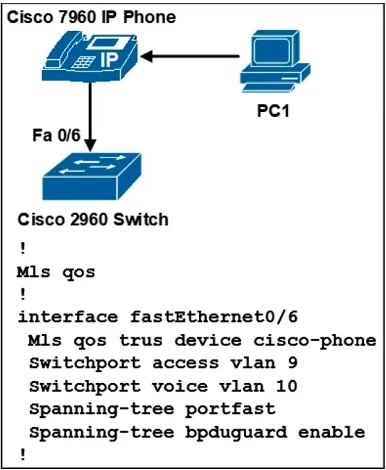

Exhibit

300-430 question #249 exhibit

Options

  • ADSCP
  • B802.1p
  • CCoS
  • DIP precedence

How the community answered

(45 responses)
  • A
    91% (41)
  • B
    2% (1)
  • C
    7% (3)

Why each option

Cisco Jabber is a software application running on a PC endpoint, which marks traffic at Layer 3 using DSCP in the IP header, so the switch port must be configured to trust DSCP to preserve those markings.

ADSCPCorrect

Cisco Jabber runs as a software client on the PC and applies QoS markings at the IP layer using DSCP values (e.g., EF for voice, AF41 for video) in the Differentiated Services field of the IP header. Configuring 'mls qos trust dscp' on port Fa 0/6 instructs the switch to accept and propagate those Layer 3 markings rather than reclassifying or overwriting them.

B802.1p

802.1p markings are embedded in the 802.1Q VLAN tag and are a Layer 2 construct applied by network devices or phones with hardware tagging capability, not by a software application running on a PC.

CCoS

CoS is the common name for the 802.1p priority bits in the 802.1Q tag and is a Layer 2 marking not generated by PC-based software applications like Cisco Jabber.

DIP precedence

IP Precedence uses only the top 3 bits of the IP ToS byte and is superseded by DSCP; Jabber uses the full 6-bit DSCP field, making IP Precedence trust insufficient to accurately preserve the application's markings.

Concept tested: Trusting DSCP QoS markings from software-based endpoints

Source: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/12_9/cjab_b_planning-guide-jabber-windows-129/cjab_b_planning-guide-jabber-windows-129_chapter_01110.html

Topics

#DSCP trust#QoS marking#Cisco Jabber#port trust policy
