300-415 · Question #130

Which component is responsible for routing protocols such as BGP and OSPF in a Cisco SD-WAN solution?

The correct answer is D. WAN Edge Router. In a Cisco SD-WAN solution, WAN Edge routers are responsible for running traditional routing protocols like BGP and OSPF on service-side VPNs.

WAN Edge Router Deployment

Question

Which component is responsible for routing protocols such as BGP and OSPF in a Cisco SD-WAN solution?

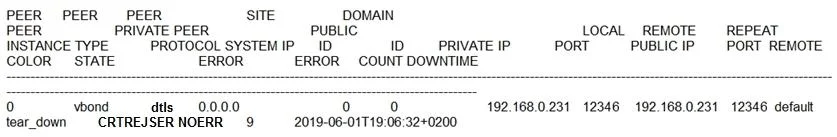

Exhibit

300-415 question #130 exhibit

Options

  • AvSmart Controller
  • BvBond Orchestrator
  • CvManage
  • DWAN Edge Router

How the community answered

(56 responses)
  • A
    5% (3)
  • B
    2% (1)
  • C
    2% (1)
  • D
    91% (51)

Why each option

In a Cisco SD-WAN solution, WAN Edge routers are responsible for running traditional routing protocols like BGP and OSPF on service-side VPNs.

AvSmart Controller

The vSmart Controller is responsible for the Overlay Management Protocol (OMP) within the SD-WAN fabric, not for directly running traditional routing protocols like BGP or OSPF with local networks.

BvBond Orchestrator

The vBond Orchestrator's role is initial device authentication and orchestration, not route exchange via BGP or OSPF.

CvManage

vManage is the management plane for configuration and monitoring, not a routing participant for data plane protocols like BGP or OSPF.

DWAN Edge RouterCorrect

The WAN Edge Router is the component responsible for running traditional routing protocols like BGP and OSPF on the service-side VPNs to exchange routes with the local network infrastructure. These routers act as the gateway between the enterprise LAN and the SD-WAN overlay, redistributing learned routes into OMP and vice versa to facilitate connectivity across the fabric.

Concept tested: WAN Edge Router routing protocols

Source: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/sdwan-xe-gs-book/m-routing-chapter.html#_Toc2227181

Topics

#SD-WAN components#WAN Edge Router#Routing protocols#Underlay routing
