300-365 · Question #26
Refer to Exhibit. A wireless client is connecting to FlexAPI which is currently working standalone mode. The AAA authentication process is returning the following AVPs: Tunnel-Private-Group-ld(81)…
The correct answer is B. While the AP is in standalone mode, the client will be placed in VLAN 10. C. When the AP transitions to connected mode, the client will be de-authenticated. G. When the AP is in connected mode, the client will be placed in VLAN 15. Traffic flow on WLANs configured for Local Switching when Flex APs are in Connected Mode: If the VLAN is returned as one of the AAA attributes and that VLAN is not present in the Flex AP database, traffic will switch centrally and the client will be assigned this VLAN/Interface…
Question
Refer to Exhibit. A wireless client is connecting to FlexAPI which is currently working standalone mode. The AAA authentication process is returning the following AVPs:
Tunnel-Private-Group-ld(81): 15 Tunnel-Medium-Type(65):IEEE-802(6) Tunnel-Type(64): VLAN(13) Which three behaviors will the client experience? (Choose three.)

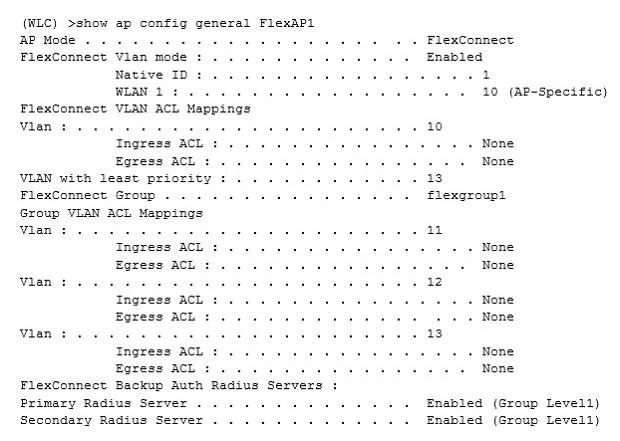

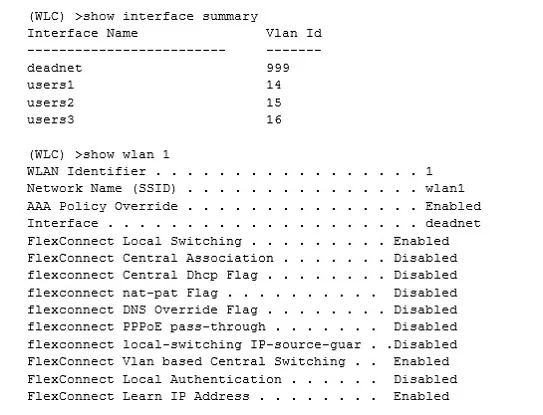

Exhibits
Options
- AWhile the AP is in standalone mode, the client will be placed in VLAN 15.
- BWhile the AP is in standalone mode, the client will be placed in VLAN 10.
- CWhen the AP transitions to connected mode, the client will be de-authenticated.
- DWhile the AP is in standalone mode, the client will be placed in VLAN 13.
- EWhen the AP is in connected mode, the client will be placed in VLAN 13.
- FWhen the AP transitions to connected mode the client will remain associated.
- GWhen the AP is in connected mode, the client will be placed in VLAN 15.
- HWhen the AP is in connected mode, the client will be placed in VLAN 10.
How the community answered
(24 responses)- A17% (4)
- B67% (16)
- D4% (1)
- F8% (2)
- H4% (1)
Explanation
Traffic flow on WLANs configured for Local Switching when Flex APs are in Connected Mode: If the VLAN is returned as one of the AAA attributes and that VLAN is not present in the Flex AP database, traffic will switch centrally and the client will be assigned this VLAN/Interface returned from the AAA server provided that the VLAN exists on the WLC. If the VLAN is returned as one of the AAA attributes and that VLAN is not present in the Flex AP database, traffic will switch centrally. If that VLAN is also not present on the WLC, the client will be assigned a VLAN/Interface mapped to a WLAN on the WLC. If the VLAN is returned as one of the AAA attributes and that VLAN is present in the FlexConnect AP database, traffic will switch locally. If the VLAN is not returned from the AAA server, the client will be assigned a WLAN mapped VLAN on that FlexConnect AP and traffic will switch locally. Traffic flow on WLANs configured for Local Switching when Flex APs are in Standalone Mode: If the VLAN returned by an AAA server is not present in the Flex AP database, the client will be put to default VLAN (that is, a WLAN mapped VLAN on Flex AP). When the AP connects back, this client will be de-authenticated and will switch traffic centrally. If the VLAN returned by an AAA server is present in the Flex AP database, the client will be put into a returned VLAN and traffic will switch locally. If the VLAN is not returned from an AAA server, the client will be assigned a WLAN mapped VLAN on that FlexConnect AP and traffic will switch locally.
Topics
Community Discussion
No community discussion yet for this question.
