300-170 · Question #158
Refer to the exhibit. Which statement about the VXLAN gateway configuration is true?
The correct answer is C. The VTEP gateway uses an IP address of 10.1.1.1. Based on the exhibit showing a VXLAN gateway configuration, the VTEP gateway uses an IP address of 10.1.1.1.
Question
Refer to the exhibit. Which statement about the VXLAN gateway configuration is true?

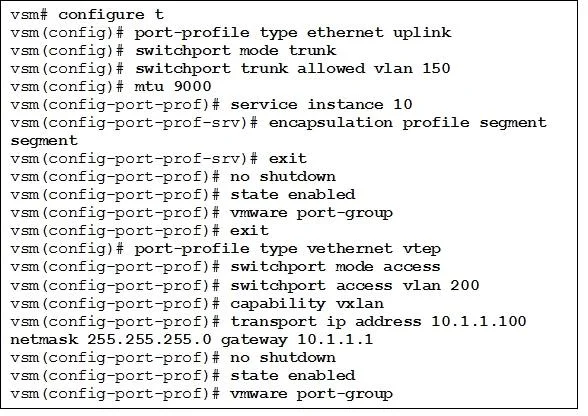

Exhibit
Options
- AVLAN 10 is mapped to a VXLAN.
- BVLAN 200 is mapped to a VXLAN.
- CThe VTEP gateway uses an IP address of 10.1.1.1.
- DThe VTEP gateway uses an IP address of 10.1.1.100.
How the community answered
(43 responses)- A2% (1)
- B5% (2)
- C91% (39)
- D2% (1)
Why each option
Based on the exhibit showing a VXLAN gateway configuration, the VTEP gateway uses an IP address of 10.1.1.1.
The configuration shows `vlan 10` is part of the `member vni 50010` mapping, indicating it's mapped to VXLAN 50010, not that VLAN 10 is the VXLAN itself.
There is no explicit mapping of VLAN 200 to a VXLAN VNI shown in the provided configuration snippet.
The exhibit explicitly shows `ip address 10.1.1.1` configured under the `interface nve1` which represents the Network Virtualization Edge (NVE) interface, also known as the VTEP gateway's IP address.
The VTEP gateway's IP address is configured as 10.1.1.1 on interface nve1, not 10.1.1.100.
Concept tested: VXLAN VTEP gateway IP address identification
Source: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_010.html
