Quality of Service

Question

Refer to the exhibit. Which type of token bucket is used as part of the configured service policy? Router(config-pmap-c)#police 8000 1000 1000 conform-action transit exceed-action set-qoes-transmit 1 violate-action drop

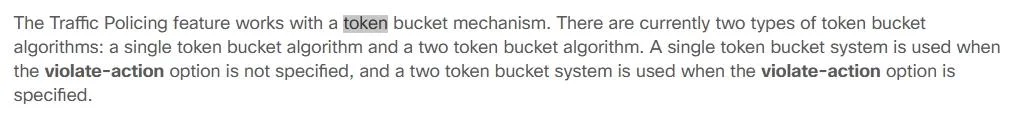

Exhibit

Options

Aviolate-actioin
Bsingle-token bucket algorithm
Ctwo-token bucket algorithm
Dconform-action

How the community answered

(39 responses)

A
13% (5)
B
3% (1)
C
77% (30)
D
8% (3)

Explanation

Cisco IOS QoS policing uses token bucket algorithms to measure traffic rates. A single-token bucket algorithm (also called one-rate two-color) has only two outcomes: conform and exceed-it uses two parameters (CIR and Bc). A two-token bucket algorithm (one-rate three-color or two-rate three-color) has three outcomes: conform, exceed, and violate. The command shown defines three rate/burst parameters (8000 bps CIR, 1000-byte Bc, 1000-byte Be) and three actions (conform-action, exceed-action, violate-action), which is the signature of the two-token bucket algorithm (C). The presence of 'violate-action drop' is the definitive indicator that a second token bucket is in use.

Topics

#token bucket#traffic policing#conform exceed violate#service policy

Community Discussion

No community discussion yet for this question.
