2V0-642 · Question #255
You have deployed an Edge Services Gateway with the following interface configuration: Your customer has requested that you provide the ability to use Remote Desktop Protocol to log into a virtual…
The correct answer is A. ChangeApplied Onto "Uplink". See the full explanation below for the reasoning.
Question

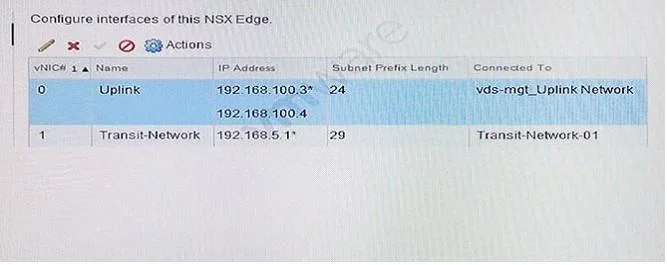

You have deployed an Edge Services Gateway with the following interface configuration:

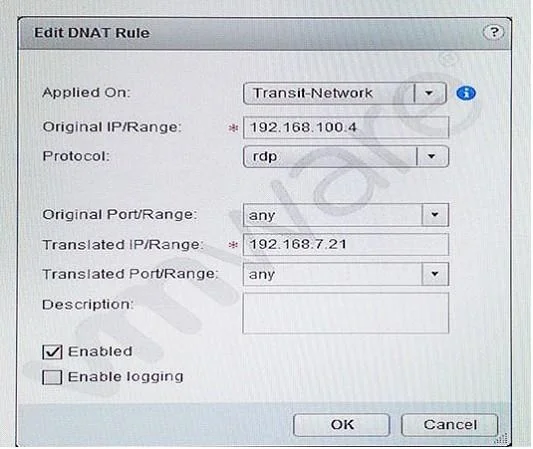

Your customer has requested that you provide the ability to use Remote Desktop Protocol to log into a virtual machine that has a tenant IP address of 192.168.7.21 using the provider IP address 192.168.100.4. You have performed the following configuration however, you cannot RDP into the virtual machine. What configuration change do you need to make to allow this connection?
Exhibits
Options
- AChangeApplied Onto "Uplink"
- BChange theProtocolto "any".
- CChange theTranslated Port/Rangeto "rdp".
- DSwap theOriginal IP/RangeandTranslated IP/RangeIP Addresses.
How the community answered
(61 responses)- A84% (51)
- B3% (2)
- C10% (6)
- D3% (2)
Community Discussion
No community discussion yet for this question.
