200-601 Question #51: Real Exam Question with Answer & Explanation

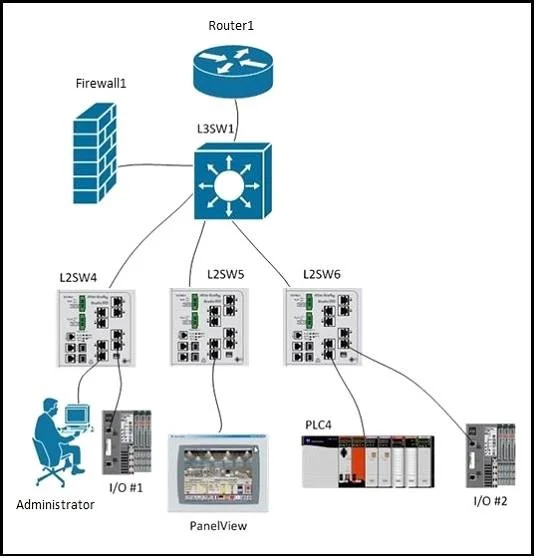

Refer to the exhibit. You are required to implement traffic segmentation in the network. See the table for relevant device details: L2SW4, L2SW5, and L2SW6 are connected to L3SW1 with 802.1Q trunks with VLAN 191 and VLAN 398 allowed on the trunk. You have the following information from L3SW1: L3SW1# show run interfaces interface Vlan1 no ip address shutdown ! interface Vlan2 ip address 10.2.2.2 255.255.255.248 ! interface Vlan191 ip address 10.10.27.126 255.255.255.192 ! interface Vlan200 ip address 10.20.20.1 255.255.255.248 ! interface Vlan398 ip address 10.15.153.1 255.255.255.0 L3SW1# show ip route *** Output Omitted *** 10.0.0.0/8 is variably subnetted, 5 subnets, 3 masks C 10.2.2.1/29 is directly connected, Vlan2 C 10.10.27.64/26 is directly connected, Vlan191 C 10.15.153.0/24 is directly connected, Vlan398 C 10.20.20.0/29 is directly connected, Vlan200 S 10.200.200.0/24 [1/0] via 10.20.20.2 S* 0.0.0.0/0 [1/0] via 10.2.2.1 You are required to implement a configuration that will meet the following connectivity requirements: - The Administrator's Station must have full access to PanelView - PanelView should have limited access, based on specific TCP ports, to PLC#1 and I/O#1 - The Administrator's Station should have no access to PLC#1 and I/O#1 - PLC#1 and I/O#1 should be able to communicate with each other on any port Which action will allow you to meet the connectivity requirements?
