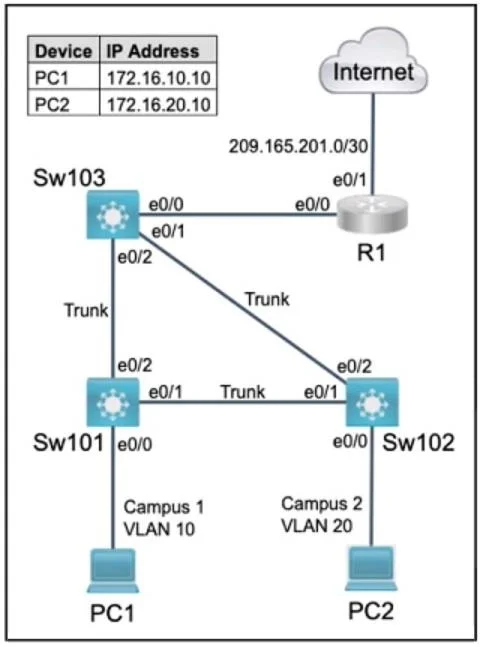

Lab Simulation 27 Guidelines This is a lab item in which tasks will be performed on virtual devices. - Refer to the Tasks tab to view the tasks for this lab item. - Refer to the Topology lab to access the device console(s) and perform the tasks. - Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. - All necessary preconfigurations have been applied. - Do not change the enable password or hostname for any device. - Save your configurations to NVRAM before moving to the next item. - Click Next at the bottom of the screen to submit this lab and move to the next question. - When Next is clicked, the lab closes and cannot be reopened. Topology Tasks Refer to the topology. All physical cabling is in place. Configure a local user account, a Named ACL (NACL) and security. 1. Configure a local account on Sw101 with telnet access only on virtual ports 0-4. Use the following information: - Username: netops - Password: ipsec4all - Algorithm: "Vigenere" - Privilege level: Exec mode 2. Configure and apply a single NACL on Sw103 using the following: - name: ENT_ACL - Restrict only PC1 on VLAN 10 from pinging PC2 - Allow only PC1 on VLAN 10 to telnet to R1 (172.16.30.2) - Prevent all other devices from telnetting from VLAN 10 - Allow all other network traffic from VLAN 10 3. Configure security on interface Ethernet 0/0 of Sw102: - Set the maximum number of secure MAC addresses to two - Ensure that the port discards the packet, counts the number of violations and sends a syslog message - Allow secure mac addresses to be learned dynamically Answer:

Exhibits

Explanation

Lab Simulation 27 - Explanation

Overall Goal

This lab tests three distinct but related network security concepts: local authentication, traffic filtering via ACLs, and Layer 2 port security. Together they form a defense-in-depth approach - controlling who can log in, what traffic is allowed, and how many devices can attach to a port.

Task 1 - Local User Account on Sw101 (VTY Telnet Access)

Commands

Sw101(config)# username netops privilege 1 password ipsec4all
Sw101(config)# service password-encryption
Sw101(config)# line vty 0 4
Sw101(config-line)# login local
Sw101(config-line)# transport input telnet
Sw101(config-line)# end
Sw101# copy running-config startup-config

Why Each Part Matters

Element	Explanation
`username netops privilege 1 password ipsec4all`	Creates the local account. `privilege 1` = user exec mode (not privileged/enable).
`password` (not `secret`)	Vigenere = Cisco Type 7 encryption, which uses the Vigenere cipher. `secret` uses MD5 (Type 5). You must use `password` here.
`service password-encryption`	Triggers Type 7 encryption on all `password`-type entries in the config. Without this, the password is stored in plaintext.
`login local`	Tells the VTY lines to authenticate against the local user database (the account you just created).
`transport input telnet`	Restricts VTY access to Telnet only. Without this, SSH may also be permitted depending on IOS defaults.
`line vty 0 4`	Covers virtual terminal lines 0 through 4 (5 simultaneous sessions).

What Goes Wrong If Skipped

Omitting login local -> the local account exists but isn't used for authentication; lines may use no auth or a line password instead.
Using secret instead of password -> wrong encryption algorithm (MD5, not Vigenere/Type 7) - question specifically asks for Vigenere.
Forgetting transport input telnet -> SSH may remain allowed, violating "telnet access only."

Task 2 - Named ACL on Sw103 (ENT_ACL)

Assumed Topology

PC1 has a specific IP on VLAN 10 (e.g., 172.16.10.10)
PC2 has an IP reachable from VLAN 10 (e.g., 172.16.10.20)
R1's interface toward VLAN 10 is 172.16.30.2

Commands

Sw103(config)# ip access-list extended ENT_ACL
Sw103(config-ext-nacl)# deny icmp host 172.16.10.10 host 172.16.10.20
Sw103(config-ext-nacl)# permit tcp host 172.16.10.10 host 172.16.30.2 eq 23
Sw103(config-ext-nacl)# deny tcp any host 172.16.30.2 eq 23
Sw103(config-ext-nacl)# permit ip any any
Sw103(config-ext-nacl)# exit
Sw103(config)# interface vlan 10
Sw103(config-if)# ip access-group ENT_ACL in
Sw103(config-if)# end
Sw103# copy running-config startup-config

Why the Order of ACEs Is Critical

ACLs are processed top-down, first match wins.

Line	Purpose	Why this position
`deny icmp` PC1 -> PC2	Blocks PC1's pings to PC2 only	Must come before the `permit ip any any` catch-all
`permit tcp` PC1 -> R1:23	Allows PC1 to Telnet to R1	Must come before the deny-telnet line below
`deny tcp any` -> R1:23	Blocks everyone else in VLAN 10 from telnetting to R1	Placed after PC1's permit so PC1 isn't caught by this deny
`permit ip any any`	Allows all other traffic	ACLs have an implicit `deny all` at the end; this explicit permit preserves normal traffic

Apply inbound on VLAN 10 SVI - filtering at ingress means traffic is checked as it enters the switch from that VLAN, which is the most efficient and correct placement.

What Goes Wrong If Skipped or Misordered

Placing deny tcp any -> R1:23 before PC1's permit -> PC1 gets denied Telnet too (first-match catches it).
Forgetting permit ip any any -> the implicit deny drops all other VLAN 10 traffic, breaking normal connectivity.
Applying out instead of in -> traffic from other VLANs toward VLAN 10 gets filtered instead of traffic originating from VLAN 10.

Task 3 - Port Security on Sw102 Ethernet 0/0

Commands

Sw102(config)# interface ethernet 0/0
Sw102(config-if)# switchport mode access
Sw102(config-if)# switchport port-security
Sw102(config-if)# switchport port-security maximum 2
Sw102(config-if)# switchport port-security violation restrict
Sw102(config-if)# end
Sw102# copy running-config startup-config

Why Each Part Matters

Command	Purpose
`switchport mode access`	Port security only works on access ports, not trunk ports
`switchport port-security`	Enables port security - required before any other port-security commands work
`maximum 2`	Only 2 unique source MAC addresses are allowed; the 3rd triggers the violation action
`violation restrict`	Restrict mode: drops the offending packet, increments the violation counter, and sends a syslog message - exactly what the question describes

Violation Mode Comparison

Mode	Drops packet	Increments counter	Syslog	Shuts port
`protect`	Yes	No	No	No
`restrict`	Yes	Yes	Yes	No
`shutdown` (default)	Yes	Yes	Yes	Yes

The question says "discards + counts + syslog but does NOT shut down the port" -> restrict.

Dynamic vs. Sticky MAC Learning

Dynamic (default, no extra command): learned MACs are stored in RAM only; lost on reboot.
Sticky (switchport port-security mac-address sticky): learned MACs are written to running config and can be saved.

The question asks for dynamic - so no sticky command is needed. This is the default behavior when you enable port security without specifying sticky.

What Goes Wrong If Skipped

Skipping switchport mode access -> port-security command may be rejected.
Using violation shutdown -> port goes err-disabled on violation instead of just logging, which is too aggressive for this requirement.
Adding mac-address sticky -> MACs persist across reboots, which contradicts "dynamically learned."

Memory Tips

Vigenere = Type 7 = password keyword (not secret). Think: "Vigenere is vintage - old, weak encryption."
ACL order = most specific first. Exceptions (PC1 allow/deny) go before general rules.
Port security violation modes: Protect = silent drop, Restrict = drop + log, Shutdown = drop + err-disable. Remember: Restrict = Responsible reporting.
Always copy run start before moving on - NVRAM saves survive reboots; the lab grader checks saved config.
