Troubleshoot Basic Connectivity

Question

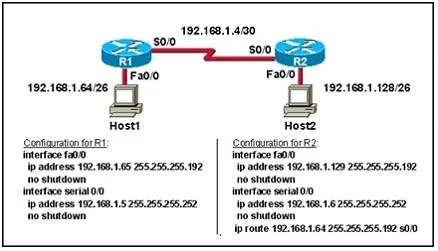

Refer to the exhibit. Assuming that the entire network topology is shown, what is the operational status of the interfaces of R2 as indicated by the command output shown?

Exhibit

Options

AOne interface has a problem.
BTwo interfaces have problems.
CThe interfaces are functioning correctly.
DThe operational status of the interfaces cannot be determined from the output shown.

How the community answered

(25 responses)

A
8% (2)
B
4% (1)
C
84% (21)
D
4% (1)

Explanation

Based on the referenced exhibit (a 'show interfaces' or 'show ip interface brief' output on R2), the correct answer is C - the interfaces are functioning correctly. In Cisco IOS, a fully operational interface shows a status of 'up' (physical layer) and a line protocol of 'up' (data link layer). If the exhibit shows all of R2's interfaces in an 'up/up' state with valid IP addresses, that confirms normal operation. An interface showing 'up/down' indicates a data link issue, 'down/down' indicates a physical layer problem, and 'administratively down' means it was manually shut down.

Topics

#interface status#show interfaces#line protocol#connectivity
