150-230 · Question #171
Referring to the exhibit, you have configured iBGP between R1 and R2 using your loopbacks. Routes from ISP 2 are not showing up on R1, and routes from ISP 1 are not showing up on R2. What needs to…
The correct answer is B. Configure OSPF between R1 and R2 to provide reachability to the ISP routes. See the full explanation below for the reasoning.
Question
Referring to the exhibit, you have configured iBGP between R1 and R2 using your loopbacks. Routes from ISP 2 are not showing up on R1, and routes from ISP 1 are not showing up on R2. What needs to be configured so that routes from both ISPs show up on both R1 and R2?

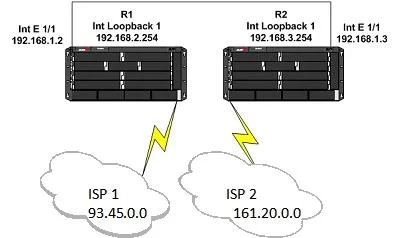

Exhibit
Options
- ACreate route-maps on R1 and R2 to assign local preferences to the ISP routes.
- BConfigure OSPF between R1 and R2 to provide reachability to the ISP routes.
- CConfigure EBGP between R1 and R2 to provide reachability to the ISP routes.
- DCreate prefix lists on R1 and R2 to redistribute the ISP routes.
How the community answered
(59 responses)- A7% (4)
- B78% (46)
- C3% (2)
- D12% (7)
Community Discussion
No community discussion yet for this question.
